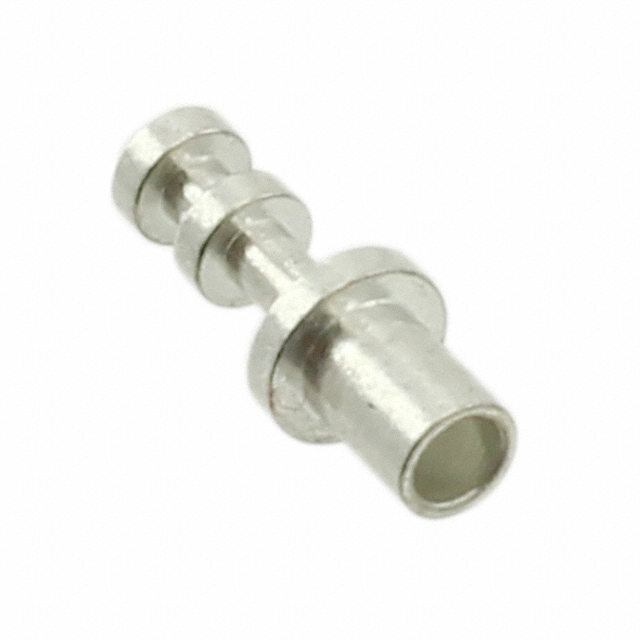

2348-3-00-80-00-00-07-0
Terminals - Turret Connectors
- Manufacturer No:
- 2348-3-00-80-00-00-07-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 2348-3-00-80-00-00-07-0
- Description:
- TERM TURRET SNG
In Stock
0 pcs On sales
$0.48
Product Parameter
- Termination
- Swage
- Length - Above Board
- 0.156" (3.96mm)
- Mounting Type
- Through Hole
- Length - Below Flange
- 0.115" (2.92mm)
- Terminal Type
- Single End
- Material - Insulation
- -
- Contact Finish
- Tin
- Diameter - Turret Head
- 0.061" (1.55mm)
- Board Thickness
- 0.094" (2.39mm)
- Mounting Hole Diameter
- 0.064" (1.63mm)
- Flange Diameter
- 0.094" (2.39mm)
- Contact Finish Thickness
- 200.0µin (5.08µm)
- Staking Side ID
- 0.046" (1.17mm)
- Staking Side OD
- 0.061" (1.55mm)
- Contact Material
- Brass Alloy
- Series
- 2348
- Insulation Color
- -
- Insulation
- Non-Insulated
- Length - Overall
- 0.271" (6.88mm)
- Part Status
- Active
- Number of Turrets
- Double
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
2348-3-00-80-00-00-07-0 Relevant information
2348

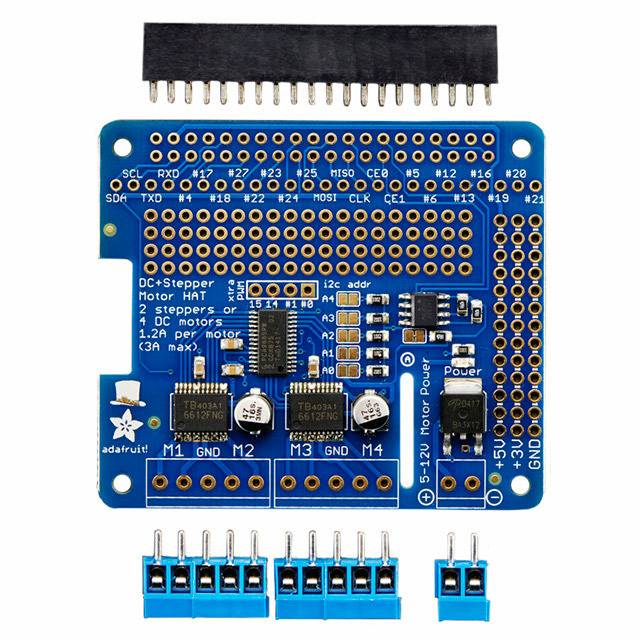

DC STEP MTR HAT FOR RASPBERRY PI
