0300-2-15-15-47-27-10-0

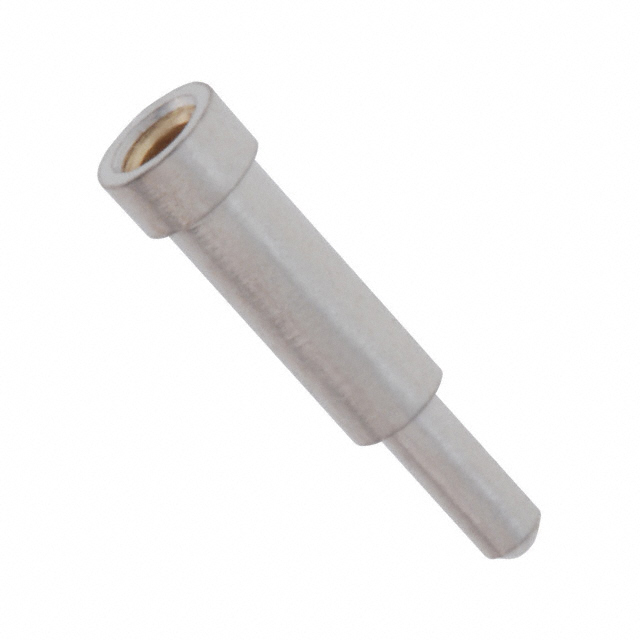

Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 0300-2-15-15-47-27-10-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 0300-2-15-15-47-27-10-0
- Description:
- CONN PIN RCPT .025-.037 SOLDER
In Stock
12125 pcs On sales
$0.43
Product Parameter
- Packaging
- Bulk
- Pin Hole Diameter
- 0.051" (1.30mm)
- Tail Type
- Standard Tail
- Accepts Pin Diameter
- 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.042" (1.07mm)
- Socket Depth
- 0.180" (4.57mm)
- Accepts Square Pin Size
- 0.025" (0.64mm)
- Tail Diameter
- 0.040" (1.02mm)
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.078" (1.98mm)
- Insertion Force
- -
- Series
- 0300
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.397" (10.08mm)
