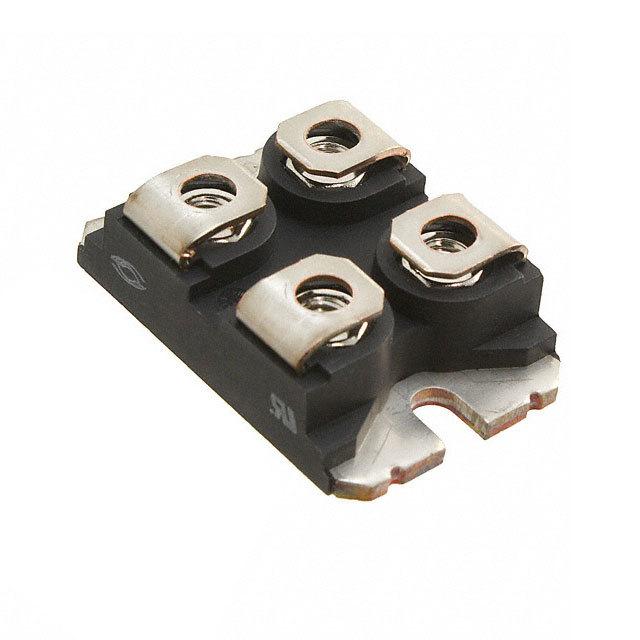

APT75GN120JDQ3
Transistors - IGBTs - Modules
- Manufacturer No:
- APT75GN120JDQ3
- Manufacture:
- Microsemi Corporation
- Package:
- ISOTOP
- Datasheet:
- APT75GN120JDQ3
- Description:
- IGBT 1200V 124A 379W SOT227
In Stock
165 pcs On sales
$31.99
Product Parameter
- IGBT Type
- Trench Field Stop
- Current - Collector Cutoff (Max)
- 200µA
- Part Status
- Active
- Voltage - Collector Emitter Breakdown (Max)
- 1200V
- Power - Max
- 379W
- Configuration
- Single
- Mounting Type
- Chassis Mount
- NTC Thermistor
- No
- Package / Case
- ISOTOP
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Supplier Device Package
- ISOTOP®
- Vce(on) (Max) @ Vge, Ic
- 2.1V @ 15V, 75A
- Input
- Standard
- Current - Collector (Ic) (Max)
- 124A
- Series
- -
- Input Capacitance (Cies) @ Vce
- 4.8nF @ 25V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
APT75GN120JDQ3 Relevant information

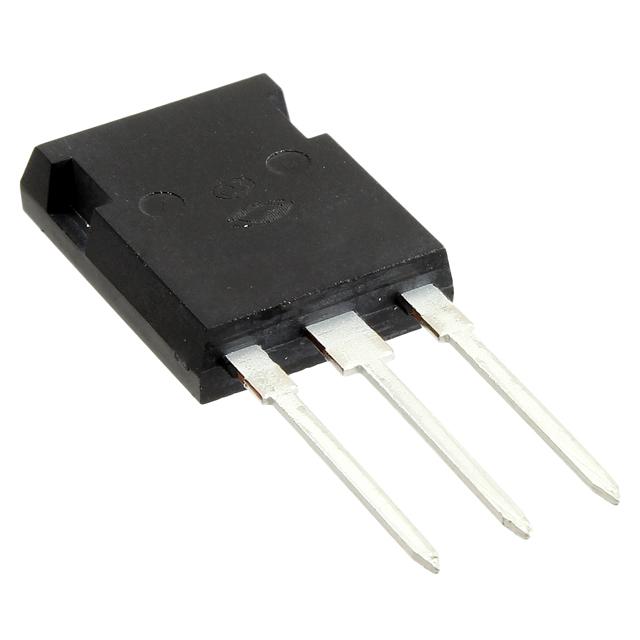

APT70GR120B2
IGBT 1200V 160A 961W TO247
APT70GR120J
IGBT 1200V 112A 543W SOT227
APT70GR120JD60
IGBT 1200V 112A 543W SOT227

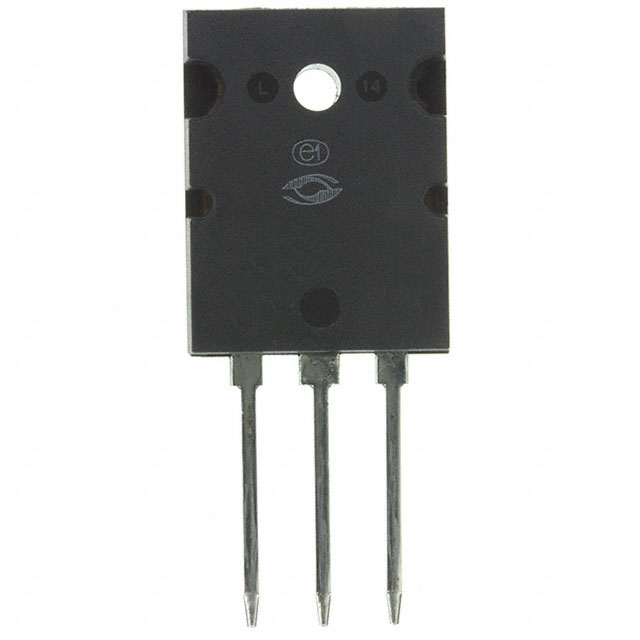

APT70GR120L
