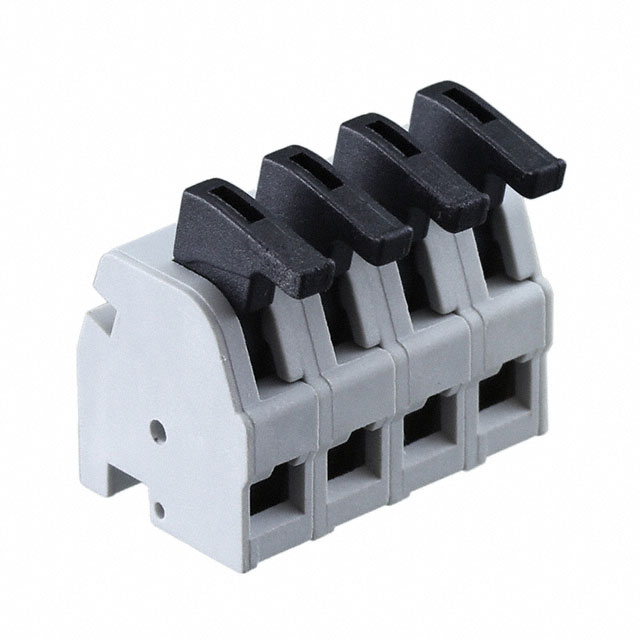

ASP0450422
Terminal Blocks - Headers, Plugs and Sockets
- Manufacturer No:
- ASP0450422
- Manufacture:
- METZ CONNECT USA Inc.
- Datasheet:
- ASP0450422
- Description:
- SPRING CLAMP TERMINAL BLOCK, PLU
In Stock
49 pcs On sales
$2.95
Product Parameter
- Type
- Plug, Female Sockets
- Torque - Screw
- -
- Positions Per Level
- 4
- Color
- Black
- Plug Wire Entry
- 180°
- Contact Mating Finish
- Tin
- Pitch
- 0.197" (5.00mm)
- Contact Material
- Copper Alloy
- Operating Temperature
- -40°C ~ 105°C
- Series
- -
- Number of Levels
- 1
- Wire Gauge or Range - AWG
- 16-28 AWG
- Features
- Lever Actuated, Retention Latches (Non-Wire Side)
- Insulation Height
- 0.610" (15.49mm)
- Wire Gauge or Range - mm²
- 0.08-1.5mm²
- Packaging
- Bulk
- Termination Style
- Screwless - Spring Cage, Tension Clamp
- Material Flammability Rating
- UL94 V-0
- Screw Size
- -
- Wire Strip Length
- -
- Part Status
- Active
- Header Orientation
- -
- Current - UL
- 10A
- Ingress Protection
- IP20
- Voltage - UL
- 300V
- Contact Tail Length
- -
- Current - IEC
- -
- Dielectric Material
- Polyamide (PA46), Nylon 4/6
- Mounting Type
- Free Hanging (In-Line)
- Number of Positions
- 4
