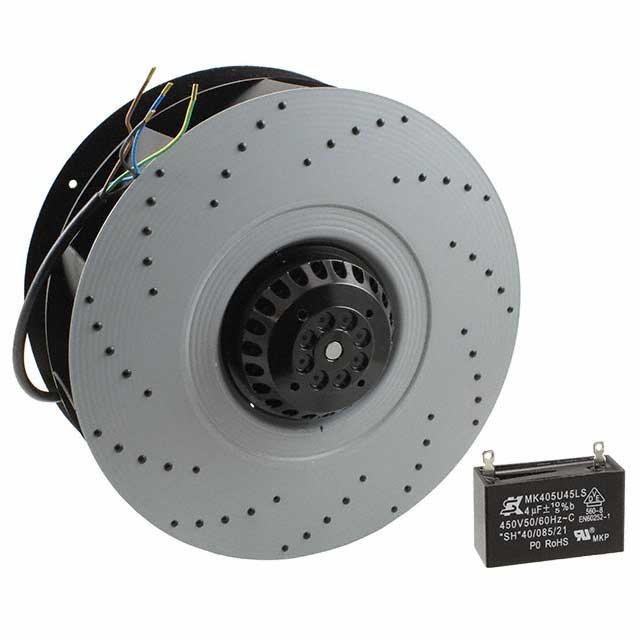

UF25GCA12-BTHR
AC Fans
- Manufacturer No:
- UF25GCA12-BTHR
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- UF25GCA12-BTHR
- Description:
- FAN AXIAL 254X89MM 115VAC
In Stock
101 pcs On sales
$62.86
Product Parameter
- Weight
- 4.1 lbs (1.9 kg)
- Lifetime @ Temp.
- -
- Air Flow
- 680.0 CFM (19.04m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Size / Dimension
- Round - 254mm Dia
- Approvals
- CE, cUL, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.660A
- Termination
- 2 Terminals
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 2600 RPM
- Power (Watts)
- 75.0W
- Noise
- 62.0 dB(A)
- Voltage Range
- -
- Width
- 89.00mm
- Static Pressure
- 0.370 in H2O (92.2 Pa)
- Series
- UF25GC
- Voltage - Rated
- 115VAC
