MD4028X24B-RSR
DC Brushless Fans (BLDC)
- Manufacturer No:
- MD4028X24B-RSR
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- MD4028X24B-RSR
- Description:
- FAN AXIAL 40X28MM 24VDC
In Stock
0 pcs On sales
$9.17
Product Parameter
- Weight
- 0.111 lb (50.35 g)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Air Flow
- 18.7 CFM (0.524m³/min)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Size / Dimension
- Square - 40mm L x 40mm H
- Features
- Thermal Overload Protector (TOP)
- Ingress Protection
- -
- Approvals
- cUL, TUV, UL
- Current Rating (Amps)
- 0.200A
- Part Status
- Active
- Operating Temperature
- -
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 11500 RPM
- Voltage Range
- -
- Noise
- 47.3 dB(A)
- Static Pressure
- 0.709 in H2O (176.6 Pa)
- Width
- 28.00mm
- Voltage - Rated
- 24VDC
- Series
- MD4028
- Lifetime @ Temp.
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
MD4028X24B-RSR Relevant information

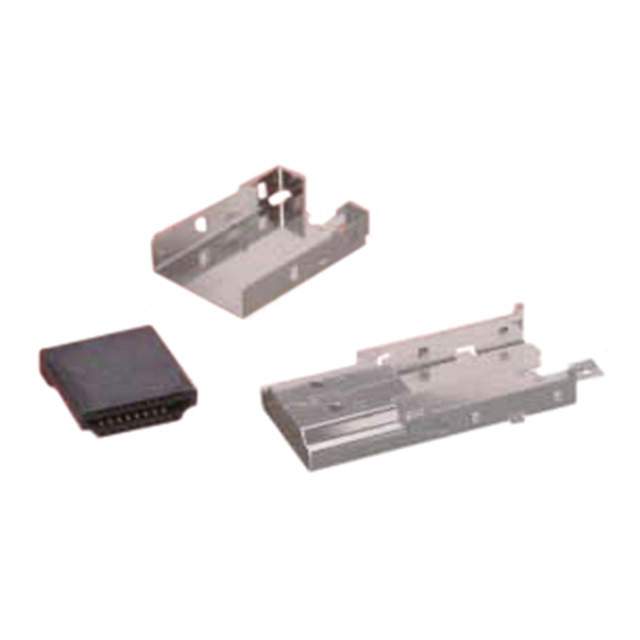

MD40-19S
CONN PLUG HDMI 19POS SOLDER
MD4028E12B-RSR
FAN AXIAL 40X28MM 12VDC WIRE
MD4028E12B2-FSR-V10
FAN AXIAL 40X28MM 12VDC WIRE
MD4028E12B2-RSR
FAN AXIAL 40X28MM 12VDC WIRE
MD4028H12B1-RSR
FAN AXIAL 40X28MM 12VDC WIRE

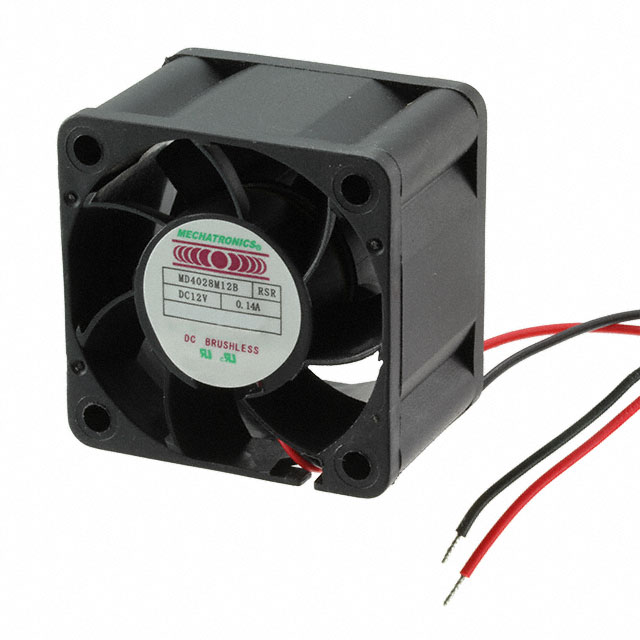

MD4028M12B-RSR
