G8032M12B-RSR-L15

DC Brushless Fans (BLDC)

Manufacturer No:
G8032M12B-RSR-L15
Manufacture:
Mechatronics Fan Group
Datasheet:
G8032M12B-RSR-L15
Description:
FAN AXIAL 80X32MM 12VDC WIRE

In Stock

10 pcs On sales

$11.83

Product Parameter

RPM
3500 RPM
Voltage Range
-
Noise
38.0 dB(A)
Static Pressure
0.290 in H2O (72.2 Pa)
Width
32.00mm
Voltage - Rated
12VDC
Series
G8032
Lifetime @ Temp.
-
Weight
0.286 lb (129.73 g)
Material - Blade
Polybutylene Terephthalate (PBT)
Air Flow
41.0 CFM (1.15m³/min)
Material - Frame
Polybutylene Terephthalate (PBT)
Fan Type
Tubeaxial
Size / Dimension
Square - 80mm L x 80mm H
Features
Thermal Overload Protector (TOP)
Ingress Protection
-
Approvals
CE, cUL, TUV, UL
Current Rating (Amps)
0.260A
Part Status
Active
Operating Temperature
-
Termination
2 Wire Leads
Bearing Type
Ball

Company Profile

Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.

G8032M12B-RSR-L15 Relevant information

G8032E12B-RSR-GB
G8032E12B-RSR-GB

FAN AXIAL 80X32MM 12VDC WIRE

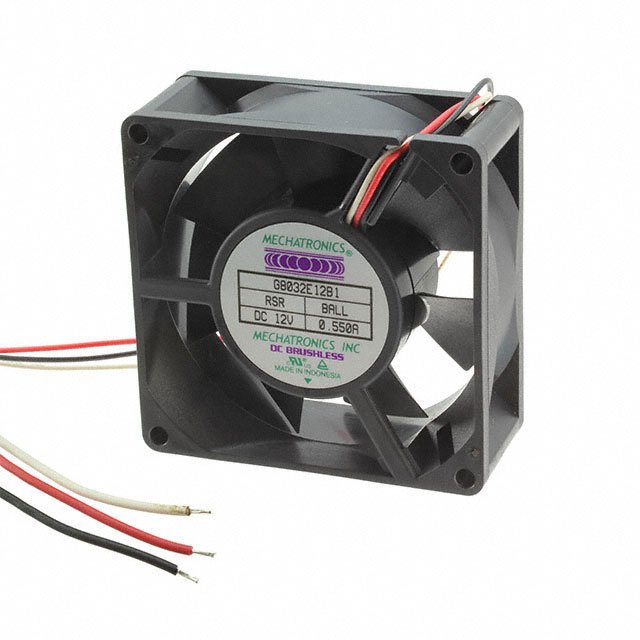

G8032E12B1-RSR-CC
