G6015X12B-RHR-EM
DC Brushless Fans (BLDC)
- Manufacturer No:
- G6015X12B-RHR-EM
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- G6015X12B-RHR-EM
- Description:
- FAN AXIAL 60X15MM IP57 12VDC
In Stock
21 pcs On sales
$13.66
Product Parameter
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 5600 RPM
- Voltage Range
- -
- Noise
- 39.0 dB(A)
- Static Pressure
- 0.300 in H2O (74.7 Pa)
- Width
- 15.00mm
- Voltage - Rated
- 12VDC
- Series
- G6015-H
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Weight
- 0.111 lb (50.35 g)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Air Flow
- 22.0 CFM (0.616m³/min)
- Size / Dimension
- Square - 60mm L x 60mm H
- Fan Type
- Tubeaxial
- Ingress Protection
- IP57 - Dust Protected, Waterproof
- Features
- -
- Current Rating (Amps)
- 0.250A
- Approvals
- CE, cUL, TUV, UL
- Operating Temperature
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
G6015X12B-RHR-EM Relevant information

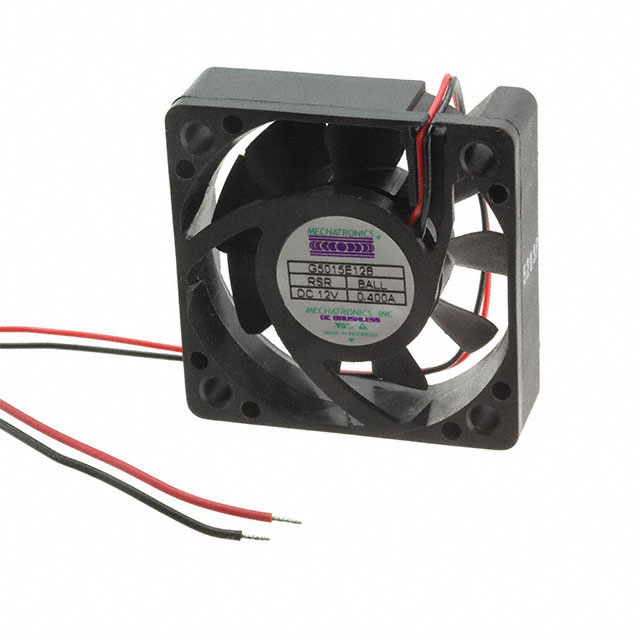

G6015E05B-RHR
