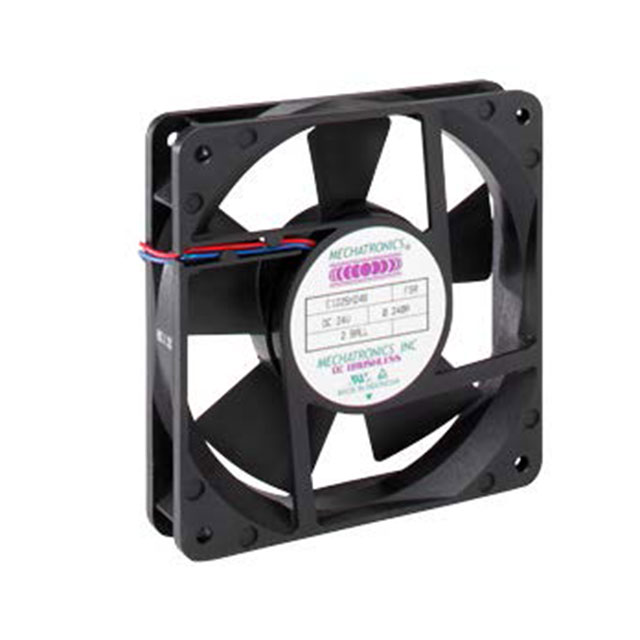

E1225M12B-FSR
DC Brushless Fans (BLDC)
- Manufacturer No:
- E1225M12B-FSR
- Manufacture:
- Mechatronics Fan Group
- Datasheet:
- E1225M12B-FSR
- Description:
- FAN AXIAL 120X25MM 12VDC
In Stock
14 pcs On sales
$12.93
Product Parameter
- Width
- 25.00mm
- Voltage - Rated
- 12VDC
- Series
- E1225
- Lifetime @ Temp.
- -
- Weight
- 0.434 lb (196.86 g)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Air Flow
- 67.0 CFM (1.88m³/min)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Size / Dimension
- Square - 120mm L x 120mm H
- Features
- Thermal Overload Protector (TOP)
- Ingress Protection
- -
- Approvals
- CE, cUL, TUV, UL
- Current Rating (Amps)
- 0.245A
- Part Status
- Active
- Operating Temperature
- -
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 2200 RPM
- Voltage Range
- -
- Noise
- 36.0 dB(A)
- Static Pressure
- 0.180 in H2O (44.8 Pa)
