USP-350-24
AC DC Converters
- Manufacturer No:
- USP-350-24
- Manufacture:
- MEAN WELL USA Inc.
- Datasheet:
- USP-350-24
- Description:
- AC/DC CONVERTER 24V 300W
In Stock
38 pcs On sales
$121.85
Product Parameter
- Approvals
- CB, CE, cURus, TUV
- Voltage - Output 4
- -
- Efficiency
- 88%
- Voltage - Isolation
- 3kV
- Part Status
- Not For New Designs
- Minimum Load Required
- No
- Applications
- ITE (Commercial)
- Operating Temperature
- -10°C ~ 65°C (With Derating)
- Mounting Type
- Chassis Mount
- Current - Output (Max)
- 12.5A
- Power (Watts)
- 300W (350W Forced Air)
- Voltage - Input
- 90 ~ 264 VAC, 127 ~ 370 VDC
- Size / Dimension
- 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm)
- Number of Outputs
- 1
- Type
- Open Frame
- Voltage - Output 1
- 24V
- Series
- USP-350 (350W)
- Voltage - Output 2
- -
- Features
- Adjustable Output, PFC, Universal Input
- Voltage - Output 3
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
USP-350-24 Relevant information

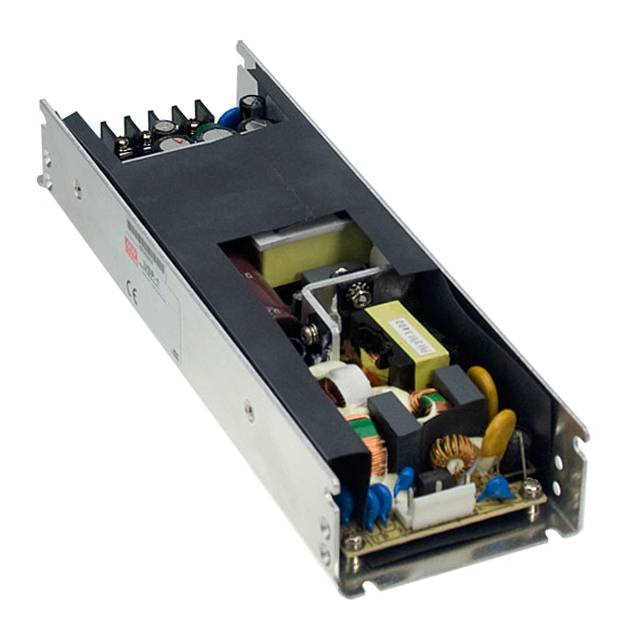

USP-150-12
AC/DC CONVERTER 12V 150W
USP-150-15
AC/DC CONVERTER 15V 150W
USP-150-24
AC/DC CONVERTER 24V 151W
USP-150-36
AC/DC CONVERTER 36V 151W
USP-150-48
AC/DC CONVERTER 48V 154W

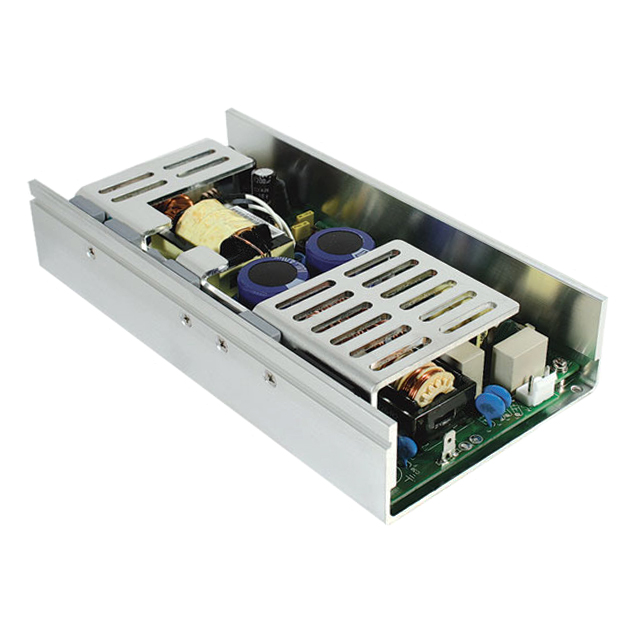

USP-225-12
