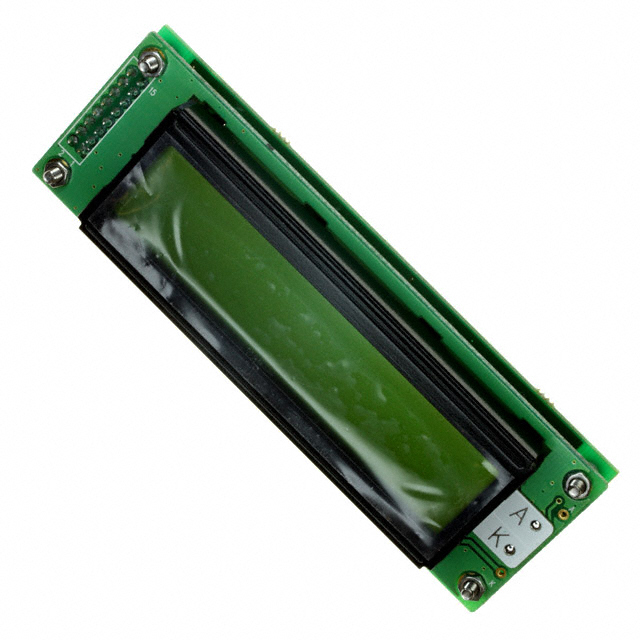

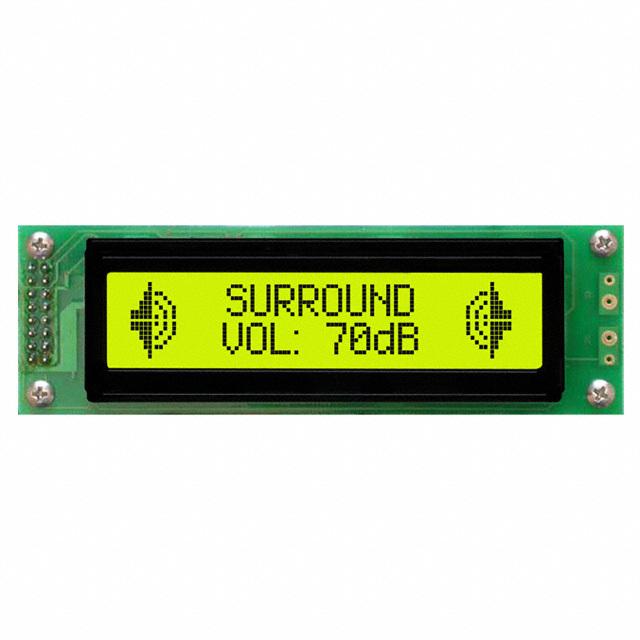

LK204-7T-1U-GW
Display Modules - LCD, OLED Character and Numeric
- Manufacturer No:
- LK204-7T-1U-GW
- Manufacture:
- Matrix Orbital
- Datasheet:
- LK204-7T-1U-GW
- Description:
- LCD SERIAL 4X20 RS232 GRAY/WHITE
In Stock
27 pcs On sales
$65.6
Product Parameter
- Interface
- I²C, RS-232, TTL
- Number of Characters
- 80
- Text Color
- Gray
- Operating Temperature
- 0°C ~ 50°C
- Part Status
- Active
- Display Mode
- Transmissive
- Display Type
- LCD - Color
- Viewing Area
- 82.00mm L x 28.40mm W
- Character Size
- 5.15mm H x 3.20mm W
- Display Format
- 20 x 4
- Background Color
- White
- Series
- -
- Character Format
- 5 x 8 Dots
- Dot Size
- 0.60mm W x 0.65mm H
- Voltage - Supply
- 4.75V ~ 5.25V
- Backlight
- LED - White
- Outline L x W x H
- 144.00mm x 38.00mm x 34.30mm
