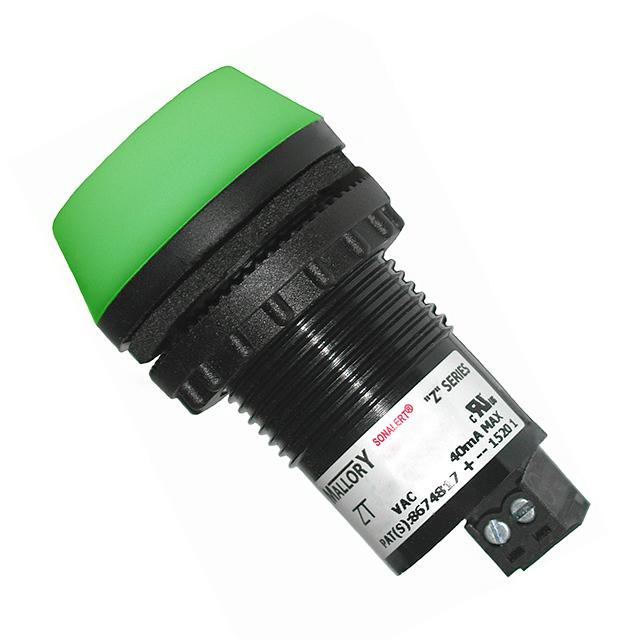

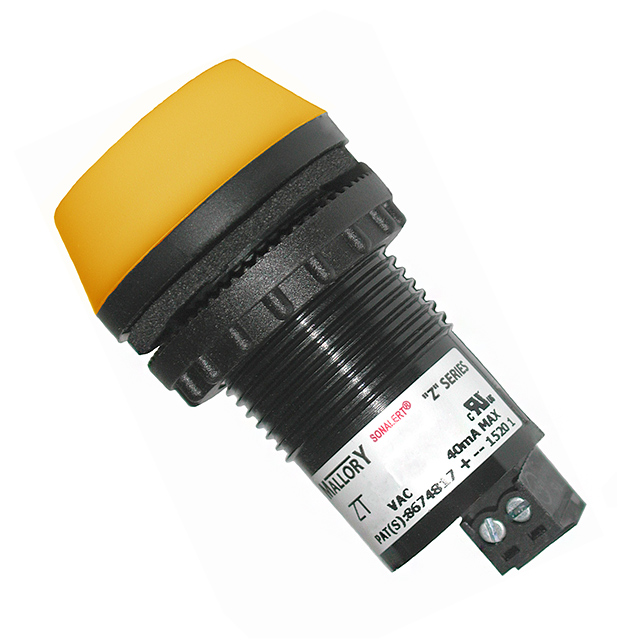

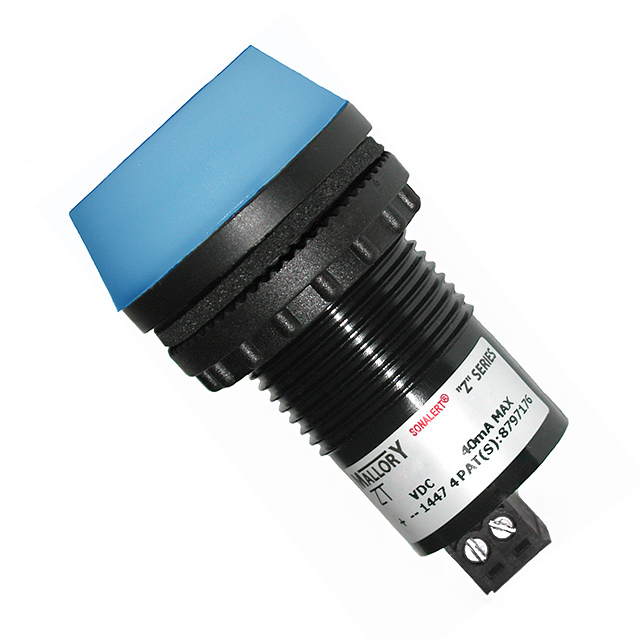

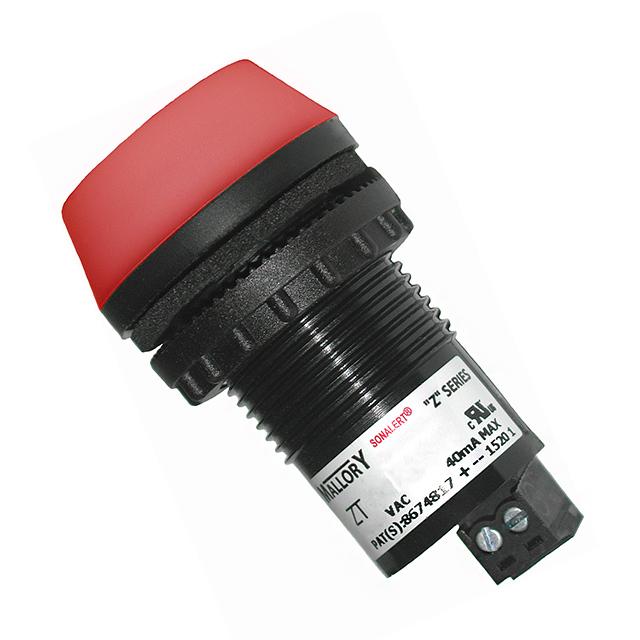

ZT028LDMT7R
Alarms, Buzzers, and Sirens
- Manufacturer No:
- ZT028LDMT7R
- Manufacture:
- Mallory Sonalert Products Inc.
- Datasheet:
- ZT028LDMT7R
- Description:
- BUZZER PIEZO 22MM PANEL MOUNT
In Stock
0 pcs On sales
$133.45
Product Parameter
- Port Location
- Top
- Series
- ZT
- Voltage Range
- 16 ~ 28V
- Ratings
- -
- Operating Mode
- Pin Selectable, Visual Indicator
- Duration
- Variable
- Current - Supply
- 40mA
- Approvals
- cUL, UL
- Driver Circuitry
- Indicator, Internally Driven
- Frequency
- 3.9kHz
- Size / Dimension
- 1.210" Dia (30.74mm)
- Packaging
- Bulk
- Ingress Protection
- NEMA 3R, 4X, 12
- Input Type
- DC
- Height - Seated (Max)
- 2.234" (56.75mm)
- Technology
- Piezo
- Operating Temperature
- -30°C ~ 65°C
- Part Status
- Active
- Sound Pressure Level (SPL)
- 85dB @ 16V, 61cm
- Termination
- Terminal Block
- Mounting Type
- Panel Mount
