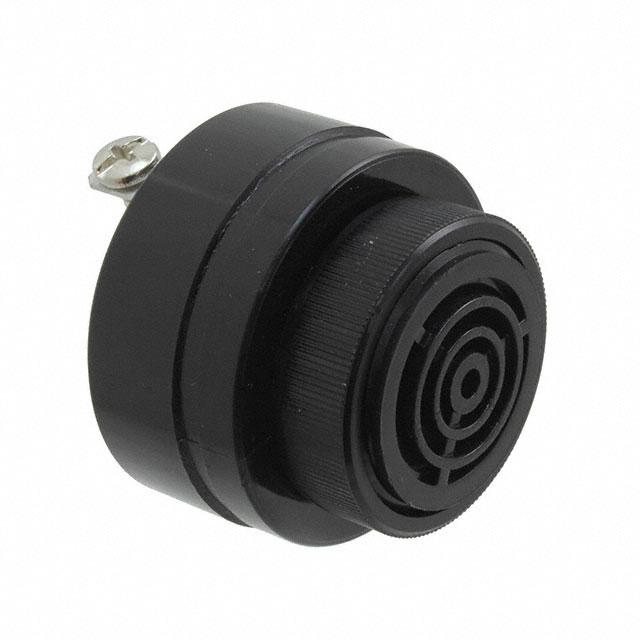

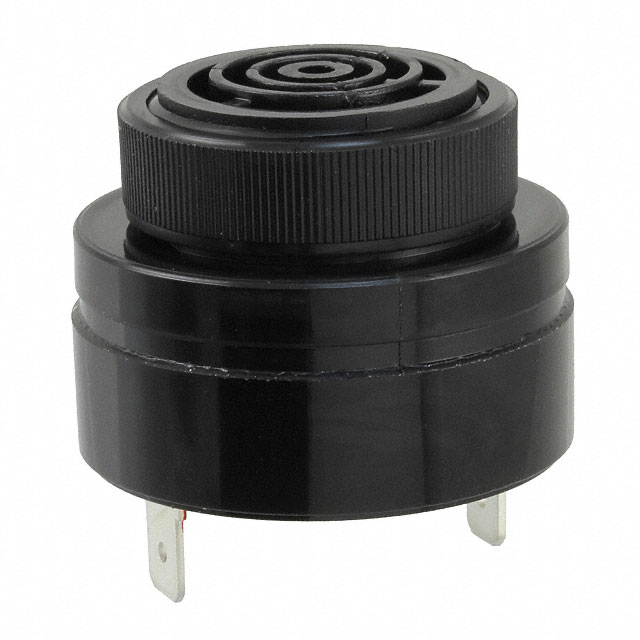

SC616NL
Alarms, Buzzers, and Sirens
- Manufacturer No:
- SC616NL
- Manufacture:
- Mallory Sonalert Products Inc.
- Datasheet:
- SC616NL
- Description:
- AUDIO PIEZO IND 6-16V PNL MNT
In Stock
11 pcs On sales
$28.2
Product Parameter
- Approvals
- UL
- Driver Circuitry
- Indicator, Internally Driven
- Frequency
- 2.9kHz
- Size / Dimension
- 1.687" Dia (42.85mm)
- Packaging
- Bulk
- Height - Seated (Max)
- 1.809" (45.96mm)
- Input Type
- DC
- Operating Temperature
- -30°C ~ 65°C
- Technology
- Piezo
- Sound Pressure Level (SPL)
- 80dB @ 6V, 61cm
- Part Status
- Active
- Termination
- Wire Leads
- Mounting Type
- Panel Mount
- Port Location
- Top
- Series
- SC
- Voltage Range
- 6 ~ 16V
- Ratings
- -
- Operating Mode
- Single Tone
- Duration
- -
- Current - Supply
- 6 ~ 22mA
