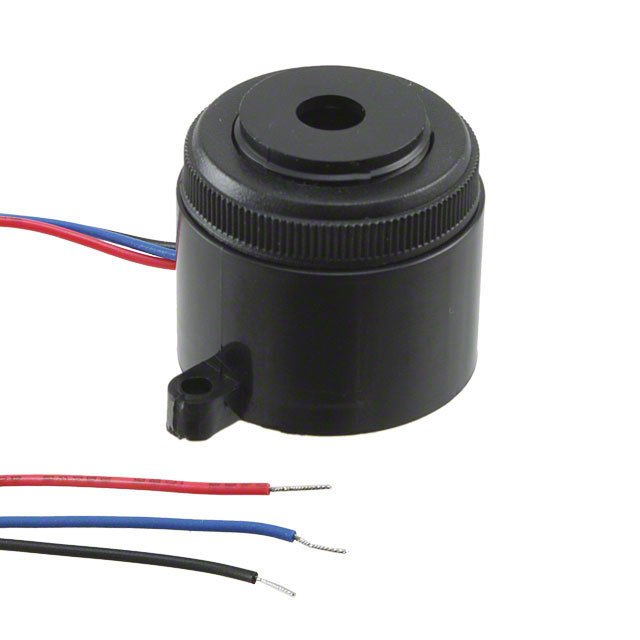

PFD-35N29WQ
Alarms, Buzzers, and Sirens
- Manufacturer No:
- PFD-35N29WQ
- Manufacture:
- Mallory Sonalert Products Inc.
- Datasheet:
- PFD-35N29WQ
- Description:
- AUDIO PIEZO INDICATOR 3-28V CHAS
In Stock
0 pcs On sales
$7.19
Product Parameter
- Series
- PFD
- Voltage Range
- 3 ~ 28V
- Ratings
- -
- Operating Mode
- Pin Selectable
- Duration
- 3 PPS
- Voltage - Rated
- 12V
- Approvals
- -
- Current - Supply
- 8mA
- Frequency
- 2.9kHz
- Driver Circuitry
- Indicator, Internally Driven
- Packaging
- Bulk
- Size / Dimension
- 1.654" Dia (42.00mm)
- Input Type
- DC
- Height - Seated (Max)
- 0.638" (16.20mm)
- Technology
- Piezo
- Operating Temperature
- -20°C ~ 70°C
- Part Status
- Active
- Sound Pressure Level (SPL)
- 90dB @ 12V, 30cm
- Termination
- Wire Leads
- Mounting Type
- Panel Mount, Flange
- Port Location
- Top
