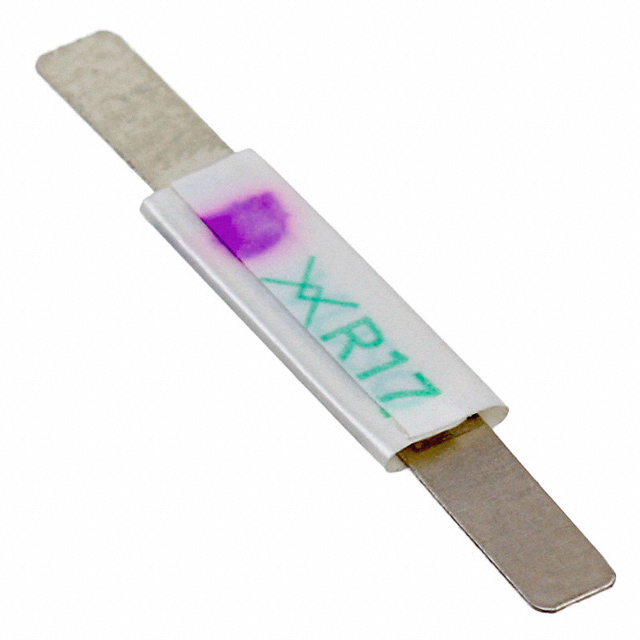

VLR175UF
PTC Resettable Fuses
- Manufacturer No:
- VLR175UF
- Manufacture:
- Littelfuse Inc.
- Package:
- Strap
- Datasheet:
- VLR175UF
- Description:
- PTC RESET FUSE 12V 1.75A STRAP
In Stock
0 pcs On sales
$0.31
Product Parameter
- Ratings
- -
- Current - Trip (It)
- 4.2A
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- -
- Packaging
- Bulk
- Operating Temperature
- -40°C ~ 70°C
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 1.75A
- Lead Spacing
- -
- Resistance - Initial (Ri) (Min)
- 17 mOhms
- Time to Trip
- 5s
- Resistance - Post Trip (R1) (Max)
- 62 mOhms
- Current - Max
- 100A
- Mounting Type
- User Defined
- Voltage - Max
- 12V
- Package / Case
- Strap
- Type
- Polymeric
- Thickness (Max)
- 0.028" (0.70mm)
- Series
- PolySwitch®, VLR
- Size / Dimension
- 0.935" L x 0.118" W (23.75mm x 3.00mm)
