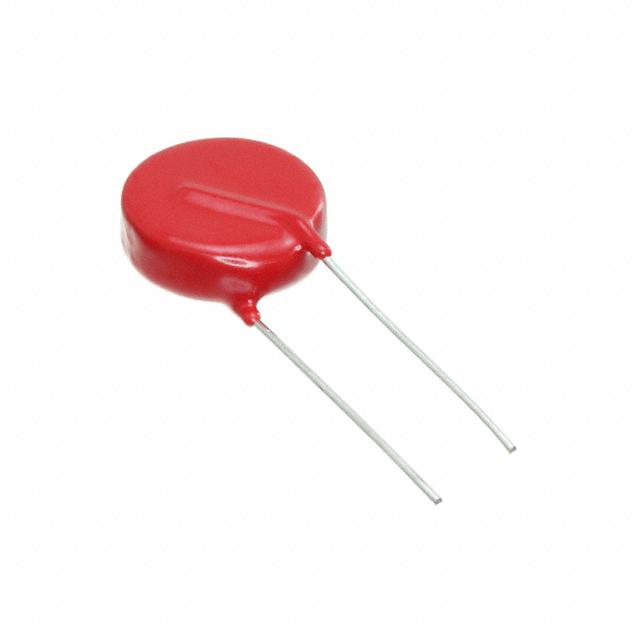

V100ZC3P
TVS - Varistors, MOVs
- Manufacturer No:
- V100ZC3P
- Manufacture:
- Littelfuse Inc.
- Package:
- Disc 7mm
- Datasheet:
- V100ZC3P
- Description:
- VARISTOR 100V 1.2KA DISC 7MM
In Stock
0 pcs On sales
$0.13
Product Parameter
- Series
- ZC
- Varistor Voltage (Typ)
- 100V
- Packaging
- Bulk
- Capacitance @ Frequency
- 600pF @ 1MHz
- Part Status
- Active
- Mounting Type
- Through Hole
- Package / Case
- Disc 7mm
- Current - Surge
- 1.2kA
- Maximum AC Volts
- 60V
- Maximum DC Volts
- 81V
- Number of Circuits
- 1
- Operating Temperature
- -55°C ~ 85°C (TA)
- Varistor Voltage (Max)
- 110V
- Energy
- 5.0J
- Varistor Voltage (Min)
- 90V
