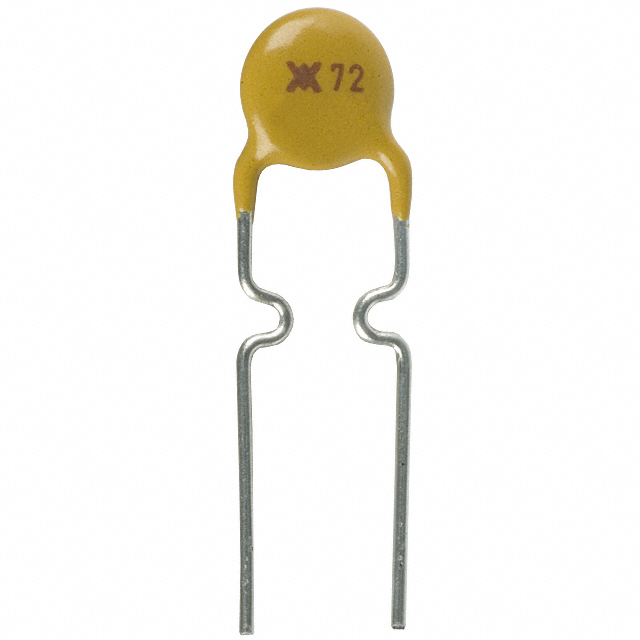

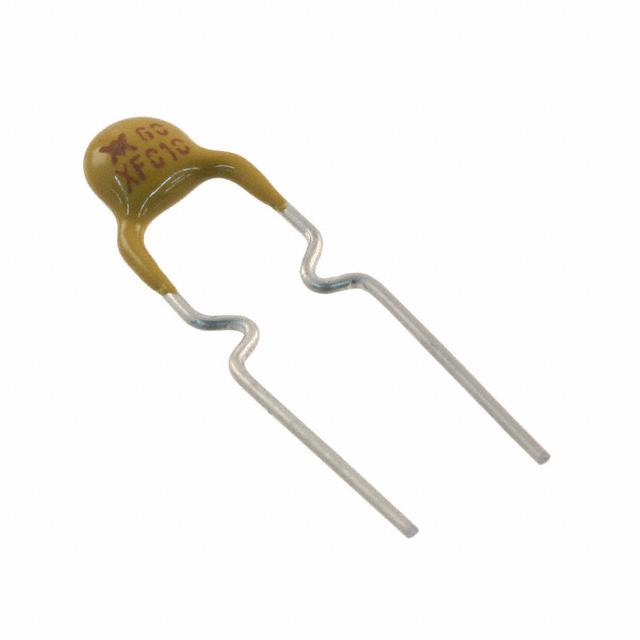

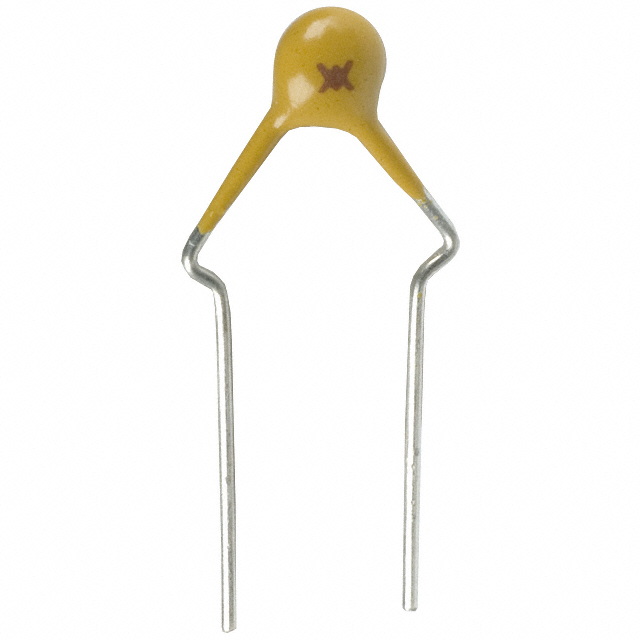

RXEF050-2
PTC Resettable Fuses
- Manufacturer No:
- RXEF050-2
- Manufacture:
- Littelfuse Inc.
- Package:
- Radial, Disc
- Datasheet:
- RXEF050-2
- Description:
- PTC RESET FUSE 72V 500MA RADIAL
In Stock
37796 pcs On sales
$0.46
Product Parameter
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 500mA
- Lead Spacing
- 0.199" (5.05mm)
- Resistance - Initial (Ri) (Min)
- 500 mOhms
- Time to Trip
- 4s
- Resistance - Post Trip (R1) (Max)
- 1.17 Ohms
- Current - Max
- 40A
- Mounting Type
- Through Hole
- Voltage - Max
- 72V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- PolySwitch®, RXEF
- Size / Dimension
- 0.311" Dia x 0.118" T (7.90mm x 3.00mm)
- Ratings
- -
- Current - Trip (It)
- 1A
- Approvals
- CQC, CSA, TUV, UL
- Height - Seated (Max)
- 0.539" (13.70mm)
- Packaging
- Cut Tape (CT)
- Operating Temperature
- -40°C ~ 85°C
