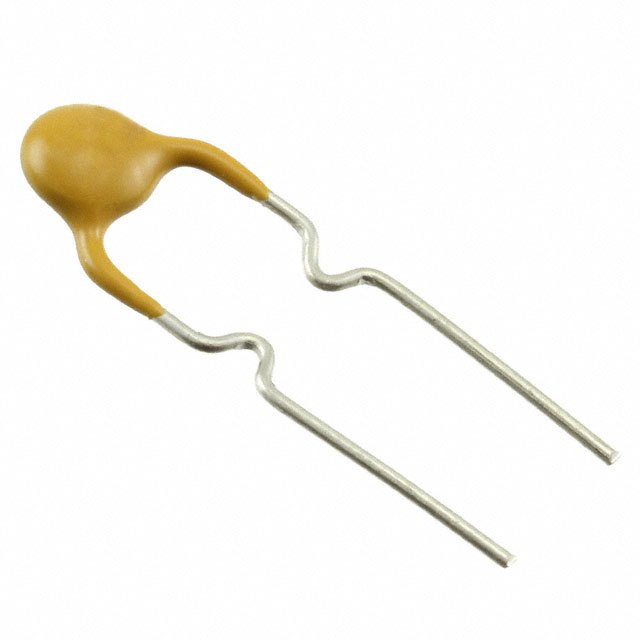

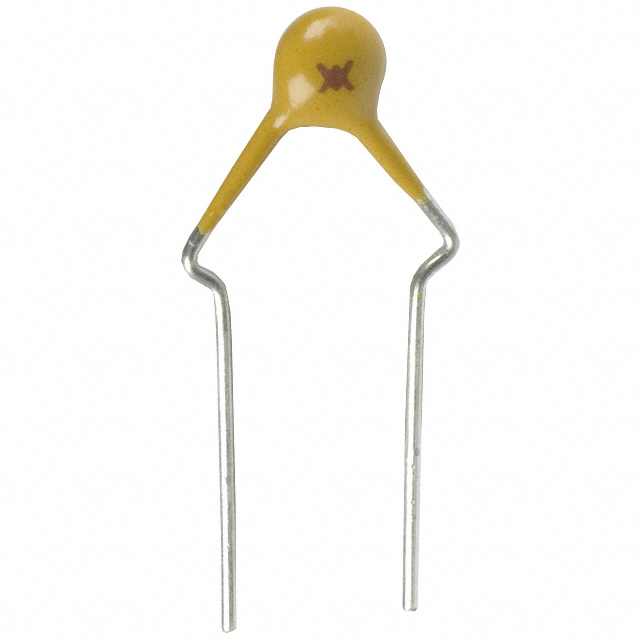

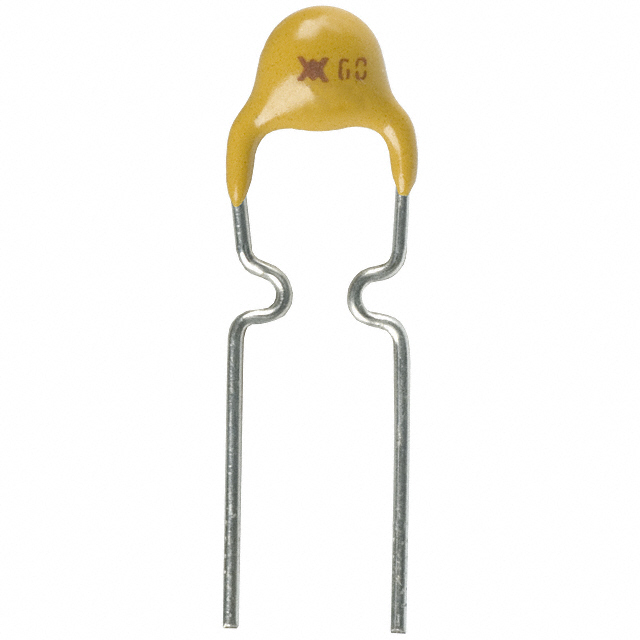

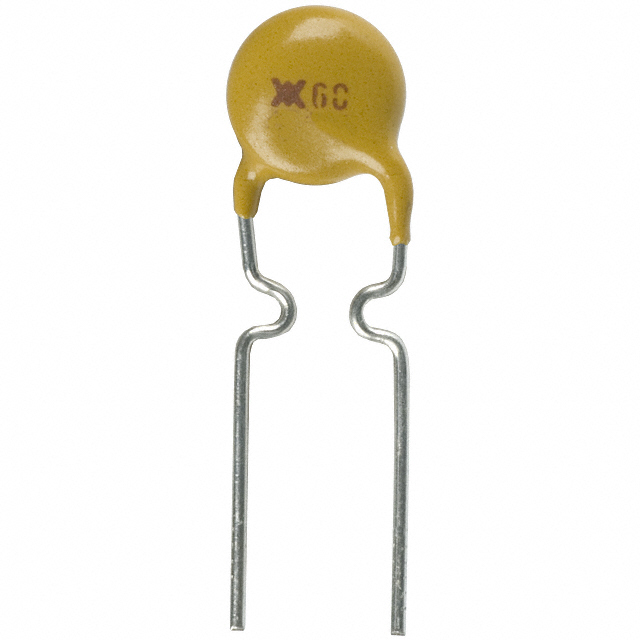

RXE025
PTC Resettable Fuses
- Manufacturer No:
- RXE025
- Manufacture:
- Littelfuse Inc.
- Package:
- Radial, Disc
- Datasheet:
- RXE025
- Description:
- PTC RESET FUSE 72V 250MA RADIAL
In Stock
0 pcs On sales
$0
Product Parameter
- Ratings
- -
- Current - Trip (It)
- 500mA
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- 0.500" (12.70mm)
- Packaging
- Bulk
- Operating Temperature
- -
- Part Status
- Obsolete
- Current - Hold (Ih) (Max)
- 250mA
- Lead Spacing
- 0.199" (5.05mm)
- Resistance - Initial (Ri) (Min)
- 1.25 Ohms
- Time to Trip
- 2.5s
- Resistance - Post Trip (R1) (Max)
- 3 Ohms
- Current - Max
- 40A
- Mounting Type
- Through Hole
- Voltage - Max
- 72V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- PolySwitch®, RXE
- Size / Dimension
- 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
