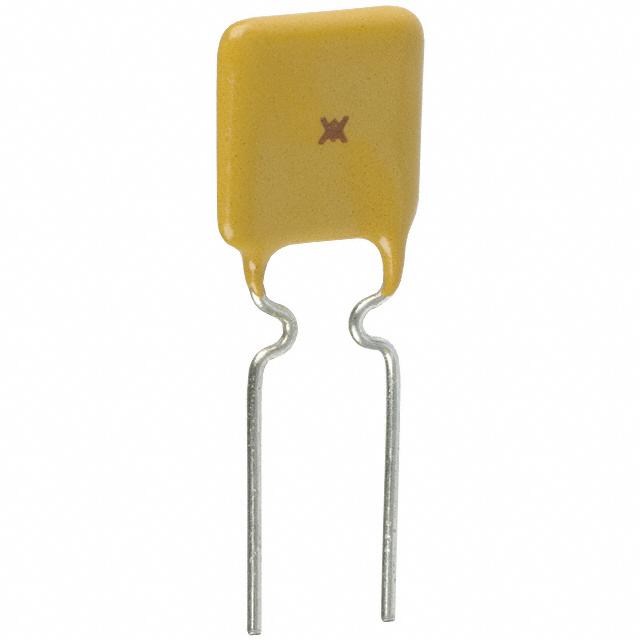

RUSBF075-AP
PTC Resettable Fuses
- Manufacturer No:
- RUSBF075-AP
- Manufacture:
- Littelfuse Inc.
- Package:
- Radial, Disc
- Datasheet:
- RUSBF075-AP
- Description:
- PTC RESET FUSE 6V 750MA RADIAL
In Stock
1587 pcs On sales
$0.5
Product Parameter
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 750mA
- Lead Spacing
- 0.201" (5.10mm)
- Resistance - Initial (Ri) (Min)
- 110 mOhms
- Time to Trip
- 400ms
- Resistance - Post Trip (R1) (Max)
- 230 mOhms
- Current - Max
- 40A
- Mounting Type
- Through Hole
- Voltage - Max
- 6V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- PolySwitch®, RUSBF
- Size / Dimension
- 0.272" Dia x 0.122" T (6.90mm x 3.10mm)
- Ratings
- -
- Current - Trip (It)
- 1.3A
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- 0.449" (11.40mm)
- Packaging
- Cut Tape (CT)
- Operating Temperature
- -40°C ~ 85°C
