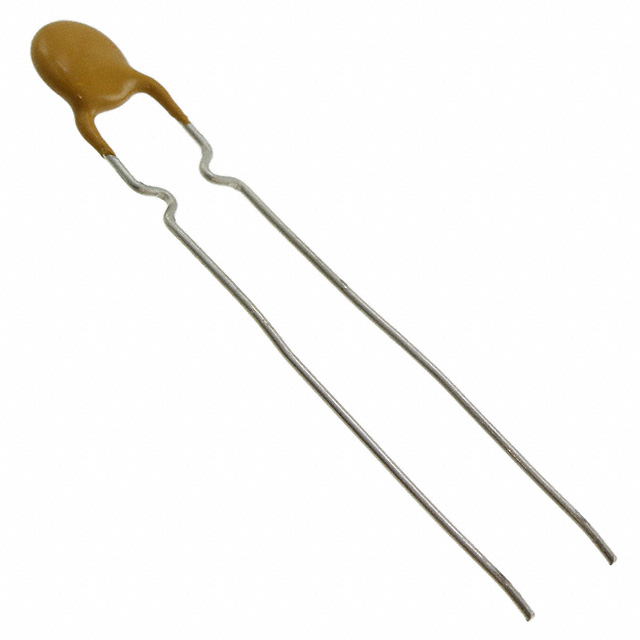

RHEF1000

PTC Resettable Fuses

Manufacturer No:: RHEF1000
Manufacture:: Littelfuse Inc.
Package:: Radial, Disc
Datasheet:: RHEF1000
Description:: PTC RESET FUSE 16V 10A RADIAL

In Stock

1582 pcs On sales

$1.15

Product Parameter

Type: Polymeric

Thickness (Max): -

Series: PolySwitch®, RHEF

Size / Dimension: 0.689" L x 0.118" W (17.50mm x 3.00mm)

Ratings: -

Current - Trip (It): 18.5A

Approvals: CSA, TUV, UL

Height - Seated (Max): 1.043" (26.50mm)

Packaging: Bulk

Operating Temperature: -40°C ~ 125°C

Part Status: Active

Current - Hold (Ih) (Max): 10A

Lead Spacing: 0.400" (10.15mm)

Resistance - Initial (Ri) (Min): 6.2 mOhms

Time to Trip: 9s

Resistance - Post Trip (R1) (Max): 15 mOhms

Current - Max: 100A

Mounting Type: Through Hole

Voltage - Max: 16V

Package / Case: Radial, Disc
