RGEF400K-AP
PTC Resettable Fuses
- Manufacturer No:
- RGEF400K-AP
- Manufacture:
- Littelfuse Inc.
- Package:
- Radial, Disc
- Datasheet:
- RGEF400K-AP
- Description:
- PTC RESET FUSE 16V 4A RADIAL
In Stock
2000 pcs On sales
$0.66
Product Parameter
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 4A
- Lead Spacing
- 0.199" (5.05mm)
- Resistance - Initial (Ri) (Min)
- 21 mOhms
- Time to Trip
- 1.7s
- Resistance - Post Trip (R1) (Max)
- 60 mOhms
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- PolySwitch®, RGEF
- Size / Dimension
- 0.331" L x 0.098" W (8.40mm x 2.50mm)
- Ratings
- -
- Current - Trip (It)
- 6.8A
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- 0.504" (12.80mm)
- Packaging
- Cut Tape (CT)
- Operating Temperature
- -40°C ~ 85°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RGEF400K-AP Relevant information

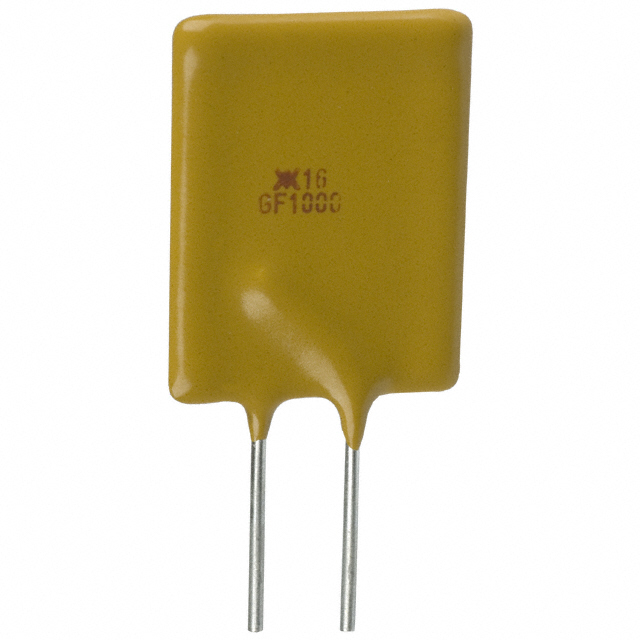

RGEF1000
