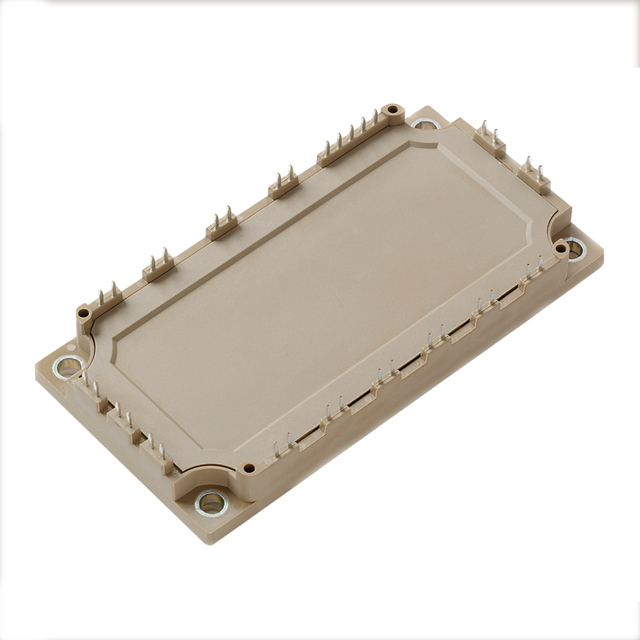

MG12200D-BA1MM
Transistors - IGBTs - Modules
- Manufacturer No:
- MG12200D-BA1MM
- Manufacture:
- Littelfuse Inc.
- Package:
- Module
- Datasheet:
- MG12200D-BA1MM
- Description:
- IGBT 1200V 300A 1400W PKG D
In Stock
59 pcs On sales
$124.68
Product Parameter
- IGBT Type
- -
- Current - Collector Cutoff (Max)
- 1mA
- Part Status
- Active
- Voltage - Collector Emitter Breakdown (Max)
- 1200V
- Power - Max
- 1400W
- Configuration
- Half Bridge
- Mounting Type
- Chassis Mount
- NTC Thermistor
- No
- Package / Case
- Module
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Supplier Device Package
- D3
- Vce(on) (Max) @ Vge, Ic
- 1.8V @ 15V, 200A (Typ)
- Input
- Standard
- Current - Collector (Ic) (Max)
- 300A
- Series
- -
- Input Capacitance (Cies) @ Vce
- 14.9nF @ 25V
