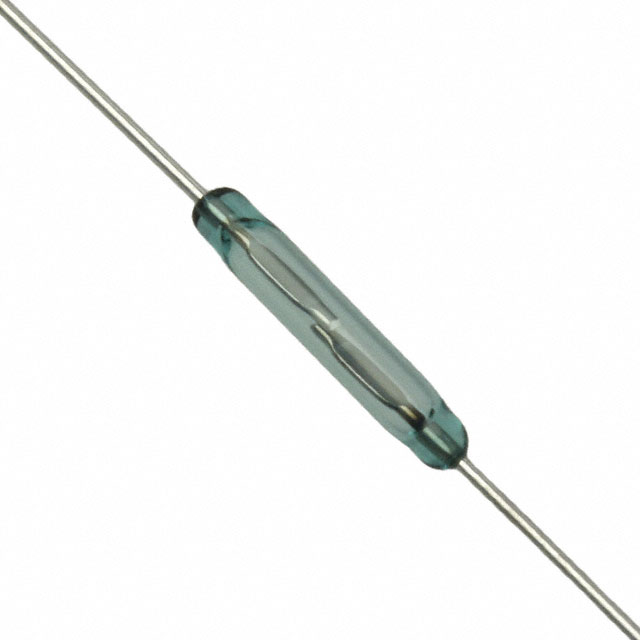

MDSR-7-10-20
Magnetic, Reed Switches
- Manufacturer No:
- MDSR-7-10-20
- Manufacture:
- Littelfuse Inc.
- Datasheet:
- MDSR-7-10-20
- Description:
- SWITCH REED SPST-NO 350MA 140V
In Stock
29594 pcs On sales
$0.65
Product Parameter
- Circuit
- SPST-NO
- Length - Overall
- 1.590" (40.39mm)
- Packaging
- Bulk
- Termination Style
- Axial
- Capacitance
- 0.3pF
- Height Above Board
- -
- Part Status
- Active
- Current - Switching
- 350mA (AC), 500mA (DC)
- Size - Body
- 0.071" Dia x 0.500" L (1.80mm x 12.70mm)
- Operating Temperature
- -40°C ~ 125°C
- Operate Time
- 0.6ms
- Voltage - Switching AC
- 140V
- Release Time
- 0.2ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Through Hole
- Operate Range
- 10 ~ 20AT
- Power - Rated
- 10W
- Type
- Glass Body
- Release Range
- -
- Series
- MDSR-7
- Current - Carry
- 800mA (DC)
