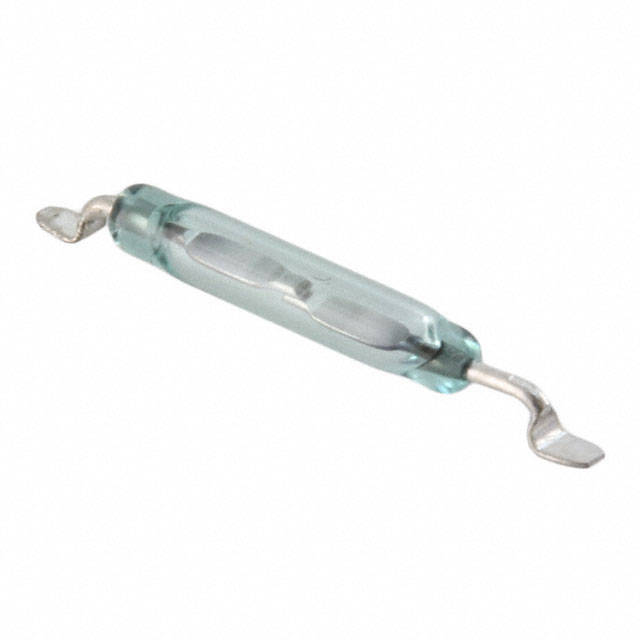

MDSM-10R-20-25
Magnetic, Reed Switches
- Manufacturer No:
- MDSM-10R-20-25
- Manufacture:
- Littelfuse Inc.
- Datasheet:
- MDSM-10R-20-25
- Description:
- SWITCH REED SPST-NO 350MA 140V
In Stock
51384 pcs On sales
$0
Product Parameter
- Release Time
- 0.1ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Surface Mount
- Operate Range
- 20 ~ 25AT
- Power - Rated
- 10W
- Type
- Glass Body
- Release Range
- -
- Series
- MDSM-10
- Current - Carry
- 1A (DC)
- Circuit
- SPST-NO
- Length - Overall
- 0.615" (15.62mm)
- Packaging
- Digi-Reel®
- Termination Style
- Gull Wing
- Capacitance
- 0.2pF
- Height Above Board
- 0.079" (2.00mm)
- Part Status
- Active
- Current - Switching
- 350mA (AC), 500mA (DC)
- Size - Body
- 0.071" Dia x 0.400" L (1.80mm x 10.16mm)
- Operating Temperature
- -40°C ~ 125°C
- Operate Time
- 0.5ms
- Voltage - Switching AC
- 140V
