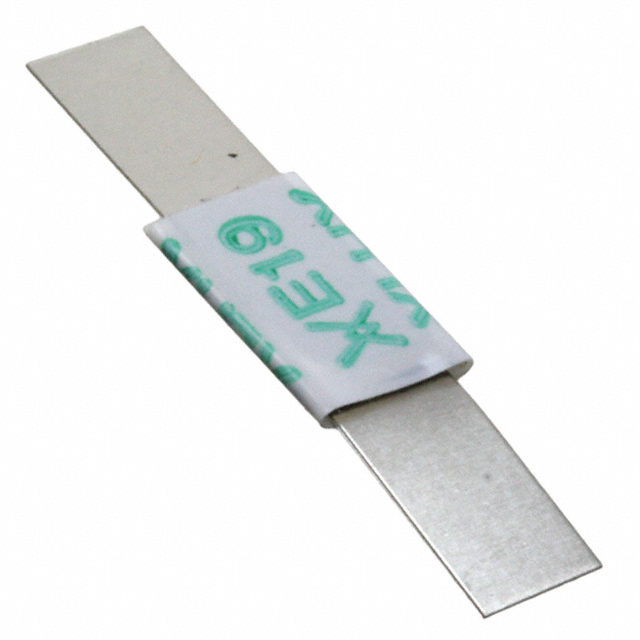

LR4-900F
PTC Resettable Fuses
- Manufacturer No:
- LR4-900F
- Manufacture:
- Littelfuse Inc.
- Package:
- Strap
- Datasheet:
- LR4-900F
- Description:
- PTC RESET FUSE 20V 9A STRAP
In Stock
16381 pcs On sales
$1.58
Product Parameter
- Lead Spacing
- -
- Resistance - Initial (Ri) (Min)
- 6 mOhms
- Time to Trip
- 5s
- Resistance - Post Trip (R1) (Max)
- 14 mOhms
- Current - Max
- 100A
- Mounting Type
- User Defined
- Voltage - Max
- 20V
- Package / Case
- Strap
- Type
- Polymeric
- Thickness (Max)
- 0.039" (1.00mm)
- Series
- PolySwitch®, LR4
- Size / Dimension
- 1.831" L x 0.323" W (46.50mm x 8.20mm)
- Ratings
- -
- Current - Trip (It)
- 16.7A
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- -
- Packaging
- Bulk
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 9A
