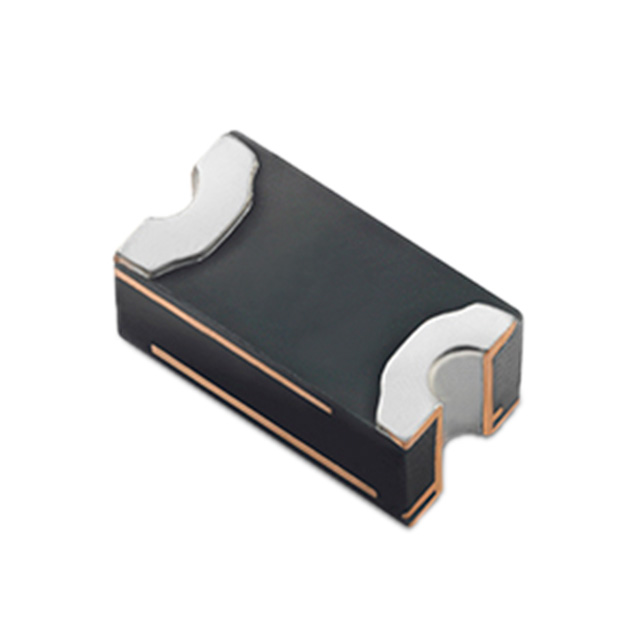

FEMTOSMDC010F-2
PTC Resettable Fuses
- Manufacturer No:
- FEMTOSMDC010F-2
- Manufacture:
- Littelfuse Inc.
- Package:
- 0603 (1608 Metric), Concave
- Datasheet:
- FEMTOSMDC010F-2
- Description:
- PTC RESET FUSE 12V 100MA 0603
In Stock
13338 pcs On sales
$0
Product Parameter
- Current - Max
- 40A
- Mounting Type
- Surface Mount
- Voltage - Max
- 12V
- Package / Case
- 0603 (1608 Metric), Concave
- Type
- Polymeric
- Thickness (Max)
- 0.033" (0.85mm)
- Series
- PolySwitch®, femtoSMDC
- Size / Dimension
- 0.063" L x 0.032" W (1.60mm x 0.80mm)
- Ratings
- -
- Current - Trip (It)
- 250mA
- Approvals
- CSA, TUV, UL
- Height - Seated (Max)
- -
- Packaging
- Digi-Reel®
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 100mA
- Lead Spacing
- -
- Resistance - Initial (Ri) (Min)
- 1.7 Ohms
- Time to Trip
- 100ms
- Resistance - Post Trip (R1) (Max)
- 8 Ohms
