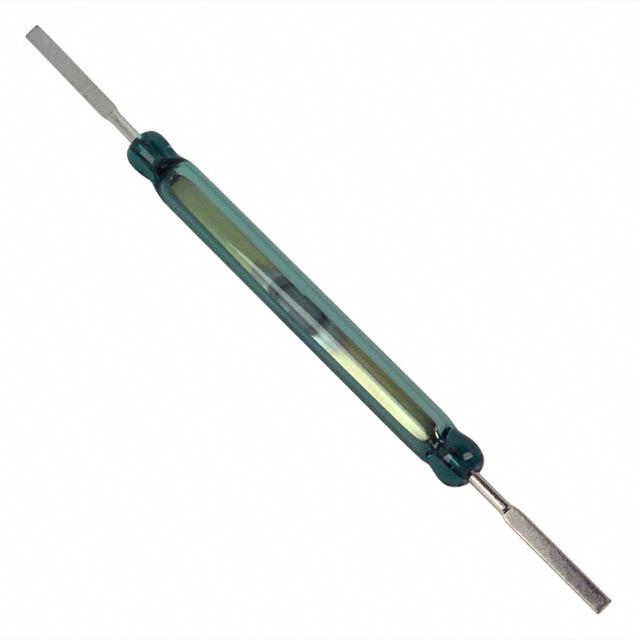

DRR-129-82-93
Magnetic, Reed Switches
- Manufacturer No:
- DRR-129-82-93
- Manufacture:
- Littelfuse Inc.
- Datasheet:
- DRR-129-82-93
- Description:
- SWITCH REED SPST-NO 2.1A 280V
In Stock
0 pcs On sales
$0
Product Parameter
- Operate Range
- 82 ~ 93AT
- Power - Rated
- 100W
- Type
- Glass Body
- Release Range
- -
- Series
- DRR-129
- Current - Carry
- 6A (DC)
- Circuit
- SPST-NO
- Length - Overall
- 3.250" (82.55mm)
- Packaging
- Bulk
- Termination Style
- Axial, Flat
- Capacitance
- 0.6pF
- Height Above Board
- -
- Part Status
- Obsolete
- Current - Switching
- 2.1A (AC), 3A (DC)
- Size - Body
- 0.207" Dia x 2.000" L (5.25mm x 50.80mm)
- Operating Temperature
- -40°C ~ 125°C
- Operate Time
- 4.5ms
- Voltage - Switching AC
- 280V
- Release Time
- 2.5ms
- Voltage - Switching DC
- 400V
- Mounting Type
- Surface Mount
