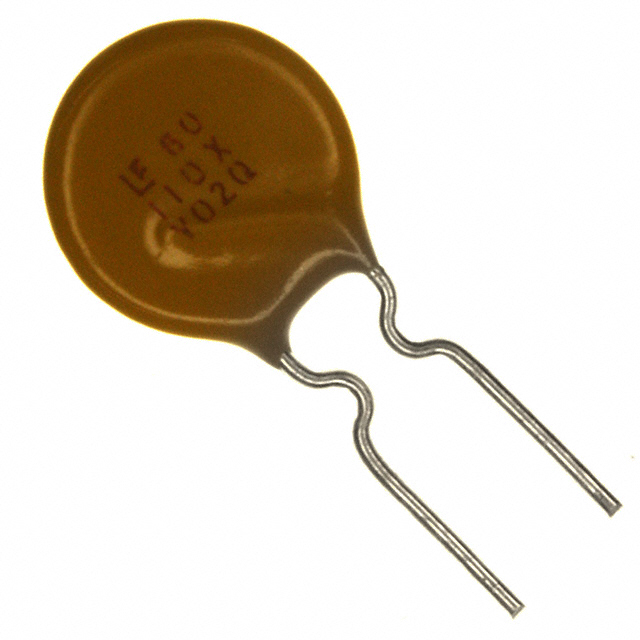

60R185XMR
PTC Resettable Fuses
- Manufacturer No:
- 60R185XMR
- Manufacture:
- Littelfuse Inc.
- Package:
- Radial, Disc
- Datasheet:
- 60R185XMR
- Description:
- PTC RESET FUSE 60V 1.85A RADIAL
In Stock
368 pcs On sales
$0.65
Product Parameter
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- POLY-FUSE®, 60R
- Size / Dimension
- 0.660" Dia x 0.122" T (16.76mm x 3.10mm)
- Ratings
- -
- Current - Trip (It)
- 3.7A
- Approvals
- cURus, TUV
- Height - Seated (Max)
- 0.906" (23.00mm)
- Packaging
- Cut Tape (CT)
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 1.85A
- Lead Spacing
- 0.201" (5.10mm)
- Resistance - Initial (Ri) (Min)
- 80 mOhms
- Time to Trip
- 12.6s
- Resistance - Post Trip (R1) (Max)
- 190 mOhms
- Current - Max
- 40A
- Mounting Type
- Through Hole
- Voltage - Max
- 60V
- Package / Case
- Radial, Disc
