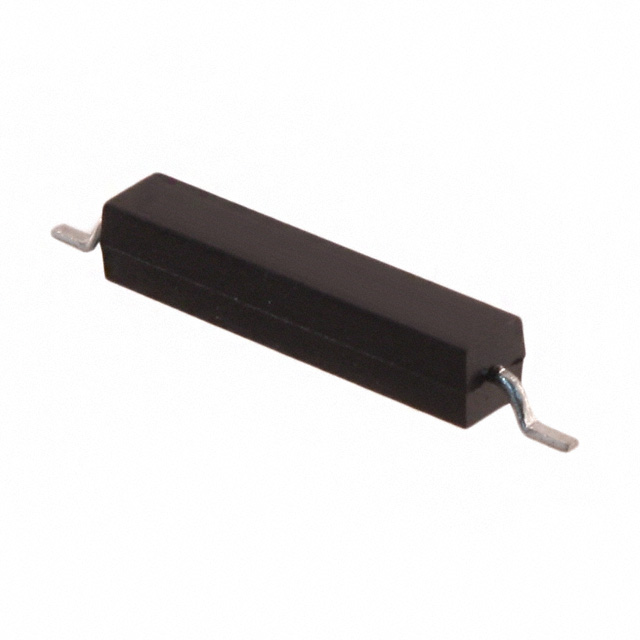

59170-1-U-00-D
Magnetic, Reed Switches
- Manufacturer No:
- 59170-1-U-00-D
- Manufacture:
- Littelfuse Inc.
- Datasheet:
- 59170-1-U-00-D
- Description:
- SWITCH REED SPST-NO 350MA 140V
In Stock
9108 pcs On sales
$0
Product Parameter
- Power - Rated
- 10W
- Type
- Molded Body
- Release Range
- -
- Series
- 59170
- Current - Carry
- 800mA (DC)
- Circuit
- SPST-NO
- Length - Overall
- 0.640" (16.26mm)
- Packaging
- Digi-Reel®
- Termination Style
- Gull Wing
- Capacitance
- 0.3pF
- Height Above Board
- 0.095" (2.41mm)
- Part Status
- Active
- Current - Switching
- 350mA (AC), 500mA (DC)
- Size - Body
- 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
- Operating Temperature
- -40°C ~ 125°C
- Operate Time
- 1ms
- Voltage - Switching AC
- 140V
- Release Time
- 0.5ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Surface Mount
- Operate Range
- 20 ~ 25AT
