16R1400GH
PTC Resettable Fuses
- Manufacturer No:
- 16R1400GH
- Manufacture:
- Littelfuse Inc.
- Package:
- Radial, Disc
- Datasheet:
- 16R1400GH
- Description:
- PTC RESET FUSE 16V 14A RADIAL
In Stock
37806 pcs On sales
$1.2
Product Parameter
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 14A
- Lead Spacing
- 0.402" (10.20mm)
- Resistance - Initial (Ri) (Min)
- 2.6 mOhms
- Time to Trip
- 9s
- Resistance - Post Trip (R1) (Max)
- 6.4 mOhms
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- POLY-FUSE®, 16R
- Size / Dimension
- 0.925" L x 0.138" W (23.50mm x 3.50mm)
- Ratings
- -
- Current - Trip (It)
- 23.8A
- Approvals
- cURus, TUV
- Height - Seated (Max)
- 1.098" (27.90mm)
- Packaging
- Bulk
- Operating Temperature
- -40°C ~ 85°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
16R1400GH Relevant information

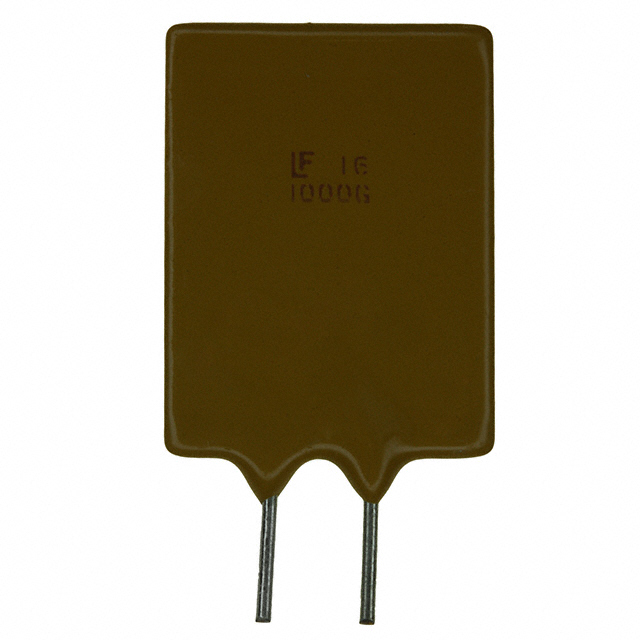

16R1000GF
PTC RESET FUSE 16V 10A RADIAL
16R1000GMR
PTC RESET FUSE 16V 10A RADIAL

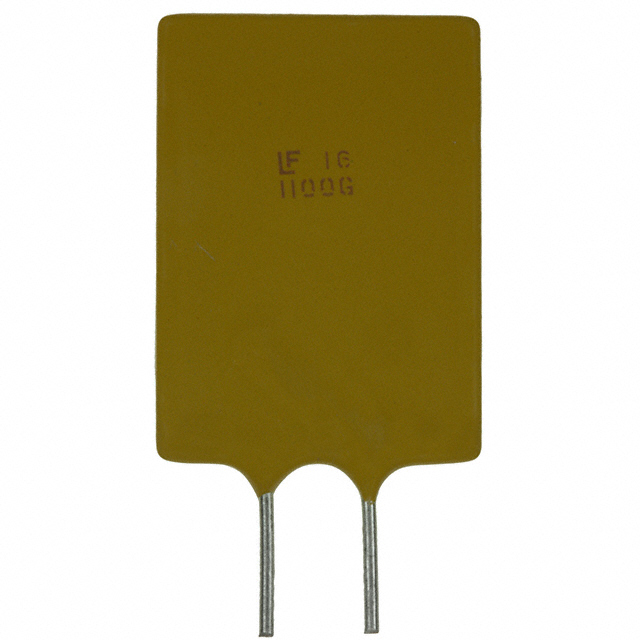

16R1100GF
PTC RESET FUSE 16V 11A RADIAL
16R1100GMR
PTC RESET FUSE 16V 11A RADIAL

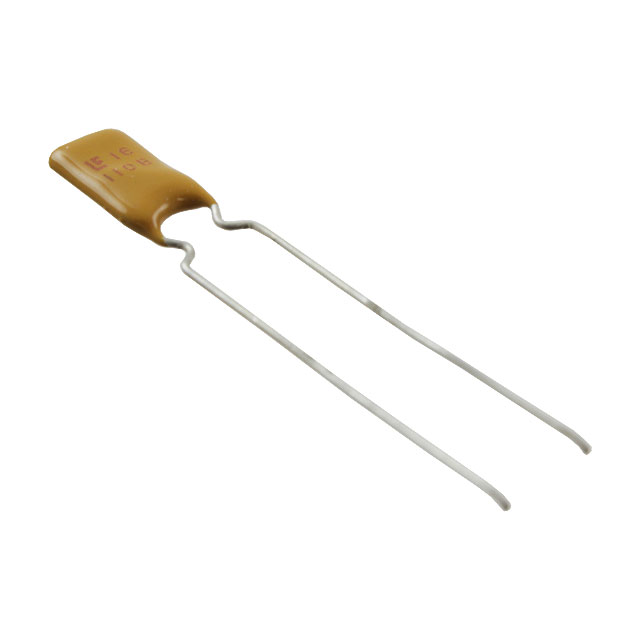

16R110BPR
PTC RESET FUSE 16V 1.1A RADIAL

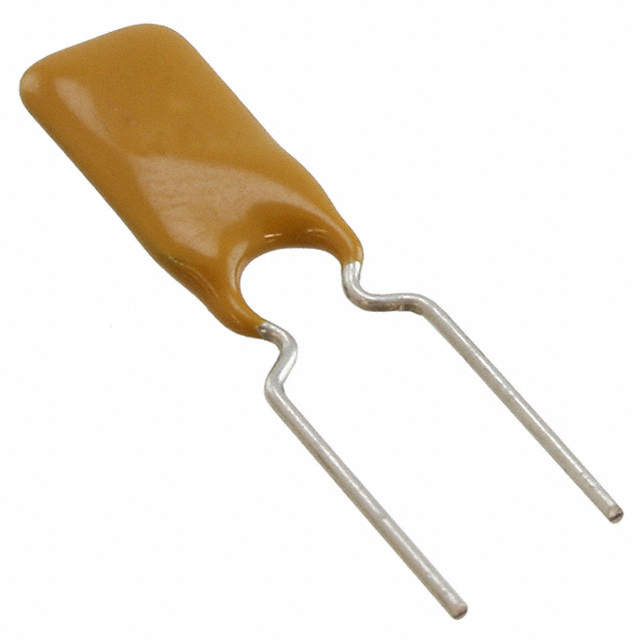

16R110BU
