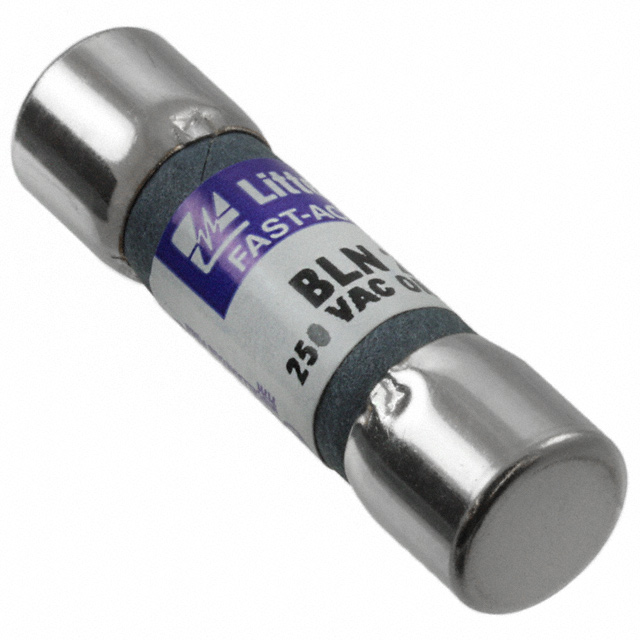

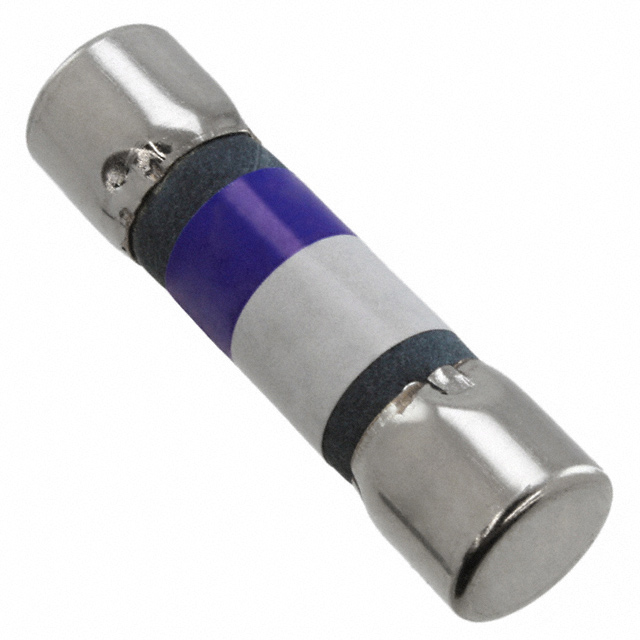

0BLN015.T
Electrical, Specialty Fuses
- Manufacturer No:
- 0BLN015.T
- Manufacture:
- Littelfuse Inc.
- Package:
- 5AG, 10mm x 38.1mm
- Datasheet:
- 0BLN015.T
- Description:
- FUSE CARTRIDGE 15A 250VAC 5AG
In Stock
624 pcs On sales
$5.74
Product Parameter
- Packaging
- Bulk
- Part Status
- Active
- Applications
- Electrical, Industrial
- Mounting Type
- Holder
- Response Time
- Fast Blow
- Package / Case
- 5AG, 10mm x 38.1mm
- Size / Dimension
- 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
- Class
- -
- DC Cold Resistance
- 0.00684 Ohms
- Series
- BLN
- Voltage Rating - AC
- 250V
- Features
- -
- Current Rating (Amps)
- 15A
- Approvals
- CSA, PSE, UR
- Operating Temperature
- -
- Fuse Type
- Cartridge
- Breaking Capacity @ Rated Voltage
- 10kA
