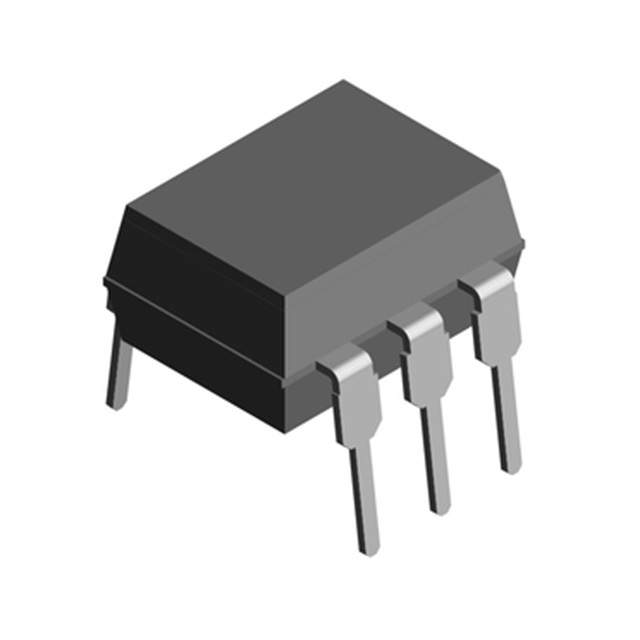

4N37M
Optoisolators - Transistor, Photovoltaic Output
- Manufacturer No:
- 4N37M
- Manufacture:
- Lite-On, Inc.
- Package:
- 6-DIP (0.400", 10.16mm)
- Datasheet:
- 4N37M
- Description:
- OPTOISO 1.5KV TRANS W/BASE 6DIP
In Stock
0 pcs On sales
$0.11
Product Parameter
- Input Type
- DC
- Current - Output / Channel
- 100mA
- Output Type
- Transistor with Base
- Current Transfer Ratio (Max)
- -
- Part Status
- Active
- Current Transfer Ratio (Min)
- 100% @ 10mA
- Mounting Type
- Through Hole
- Voltage - Forward (Vf) (Typ)
- 1.2V
- Package / Case
- 6-DIP (0.400", 10.16mm)
- Turn On / Turn Off Time (Typ)
- -
- Number of Channels
- 1
- Current - DC Forward (If) (Max)
- 60mA
- Voltage - Isolation
- 1500Vrms
- Vce Saturation (Max)
- 300mV
- Operating Temperature
- -55°C ~ 100°C
- Rise / Fall Time (Typ)
- 3µs, 3µs
- Series
- -
- Voltage - Output (Max)
- 30V
- Packaging
- Tube
- Supplier Device Package
- 6-DIP
