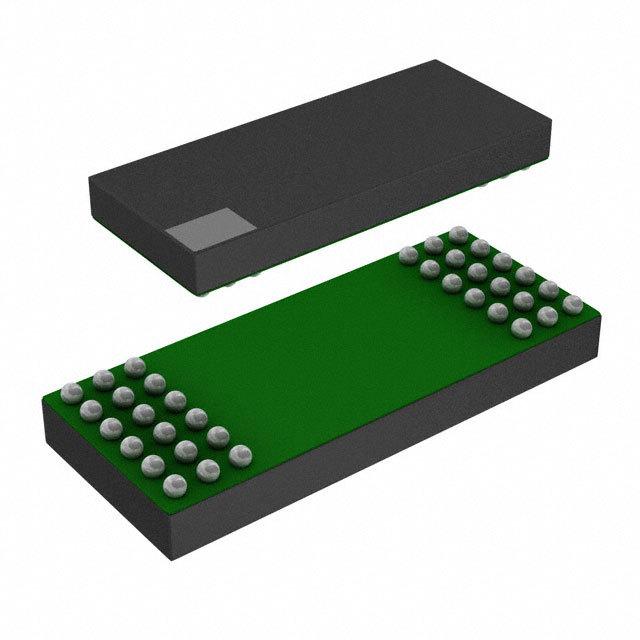

LTM2895HY#PBF
Digital Isolators
- Manufacturer No:
- LTM2895HY#PBF
- Manufacture:
- Linear Technology / Analog Devices
- Package:
- 36-BGA
- Datasheet:
- LTM2895HY#PBF
- Description:
- DGTL ISO 100MHZ SPI 36BGA
In Stock
160 pcs On sales
$22.89
Product Parameter
- Base Part Number
- LTM2895
- Voltage - Supply
- 3V ~ 5.5V
- Type
- SPI
- Number of Channels
- 9
- Series
- -
- Voltage - Isolation
- 6000Vrms
- Data Rate
- 100Mbps
- Operating Temperature
- -40°C ~ 125°C
- Packaging
- Tray
- Inputs - Side 1/Side 2
- 8/4
- Technology
- Magnetic Coupling
- Rise / Fall Time (Typ)
- 10ns, 10ns
- Part Status
- Active
- Supplier Device Package
- 36-BGA (15x6.25)
- Channel Type
- Bidirectional, Unidirectional
- Pulse Width Distortion (Max)
- -
- Mounting Type
- Surface Mount
- Propagation Delay tpLH / tpHL (Max)
- 150ns, 150ns
- Isolated Power
- No
- Common Mode Transient Immunity (Min)
- 50kV/µs
- Package / Case
- 36-BGA
