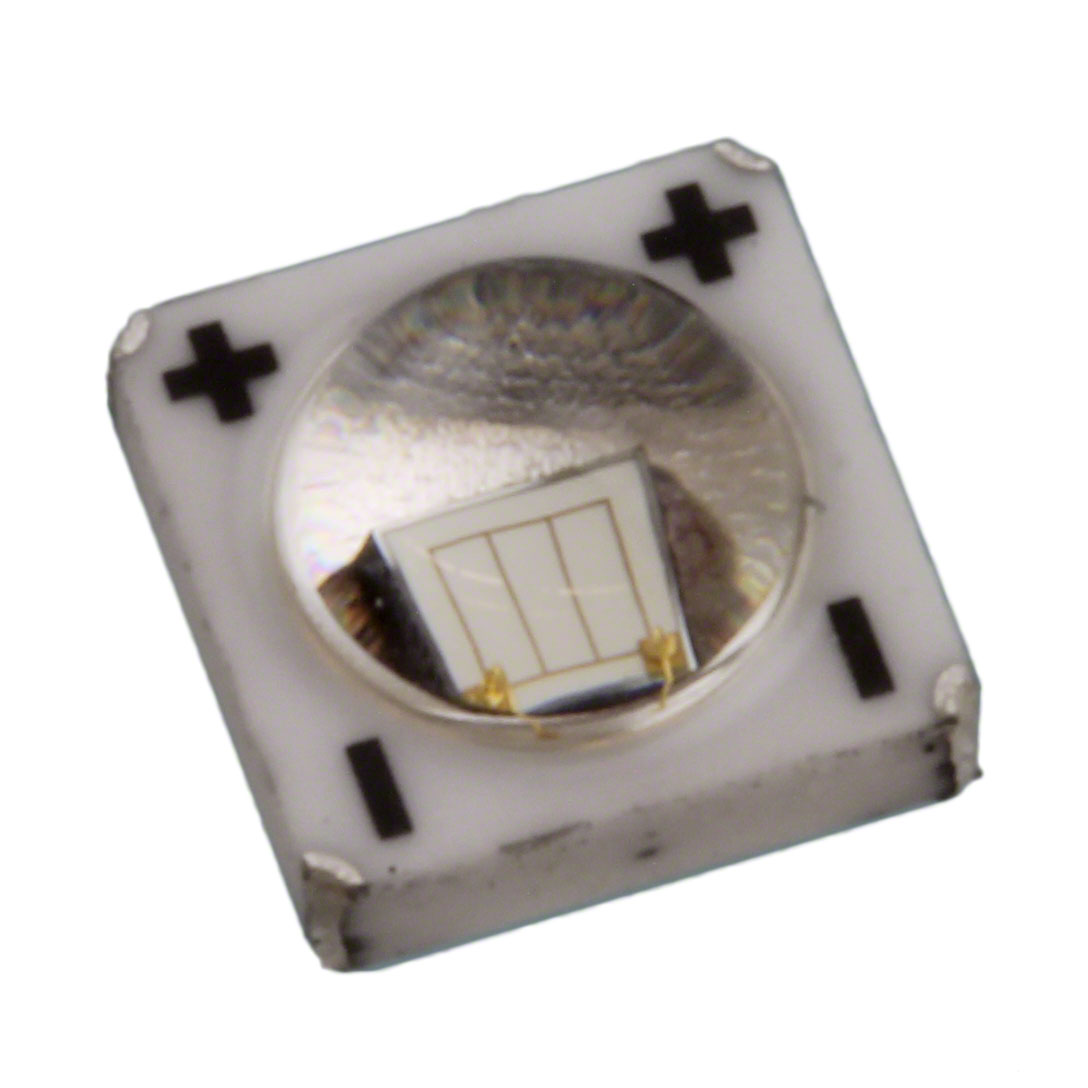

LZ1-00CW02-0055
LED Lighting - White
- Manufacturer No:
- LZ1-00CW02-0055
- Manufacture:
- LED Engin Inc.
- Package:
- 4-SMD, No Lead Exposed Pad
- Datasheet:
- LZ1-00CW02-0055
- Description:
- LED LZ1 COOL WHITE 5500K 4SMD
In Stock
750 pcs On sales
$5.25
Product Parameter
- Color
- White, Cool
- Supplier Device Package
- 4040
- Series
- LZ1
- CRI (Color Rendering Index)
- 75 (Typ)
- CCT (K)
- 5500K
- Flux @ 25°C, Current - Test
- 205lm (182lm ~ 228lm)
- Packaging
- Cut Tape (CT)
- Flux @ 85°C, Current - Test
- -
- Part Status
- Active
- Lumens/Watt @ Current - Test
- 64 lm/W
- Current - Max
- 1.2A
- Voltage - Forward (Vf) (Typ)
- 3.2V
- Mounting Type
- Surface Mount
- Thermal Resistance of Package
- -
- Viewing Angle
- 95°
- Current - Test
- 1A
- Package / Case
- 4-SMD, No Lead Exposed Pad
- Size / Dimension
- 0.173" L x 0.173" W (4.40mm x 4.40mm)
- Height - Seated (Max)
- 0.102" (2.60mm)
