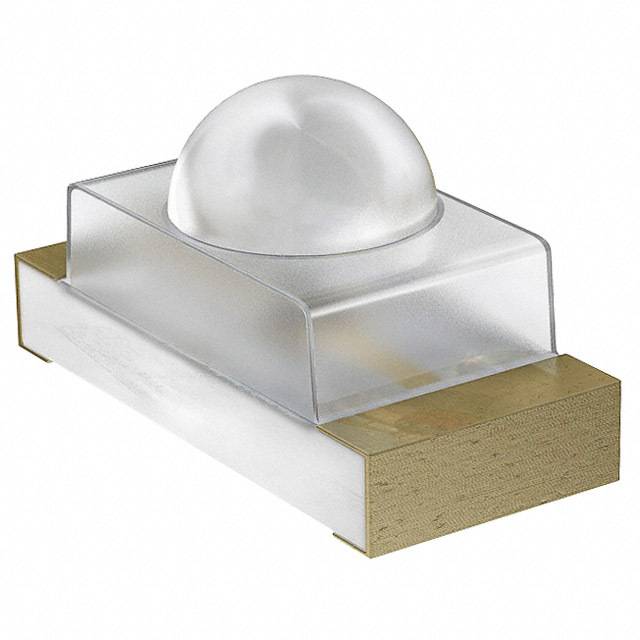

APTD3216F3C-P22
Infrared, UV, Visible Emitters
- Manufacturer No:
- APTD3216F3C-P22
- Manufacture:
- Kingbright
- Package:
- 1206 (3216 Metric)
- Datasheet:
- APTD3216F3C-P22
- Description:
- 3.2X1.6MM INFRARED SMD LED
In Stock
3412 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Wavelength
- 940nm
- Orientation
- Top View
- Part Status
- Active
- Mounting Type
- Surface Mount
- Viewing Angle
- 40°
- Package / Case
- 1206 (3216 Metric)
- Operating Temperature
- -40°C ~ 85°C
- Voltage - Forward (Vf) (Typ)
- 1.2V
- Current - DC Forward (If) (Max)
- 50mA
- Type
- Infrared (IR)
- Radiant Intensity (Ie) Min @ If
- 2mW/sr @ 20mA
- Series
- -
