15236
Terminal Strips and Turret Boards
- Manufacturer No:
- 15236
- Manufacture:
- Keystone Electronics
- Datasheet:
- 15236
- Description:

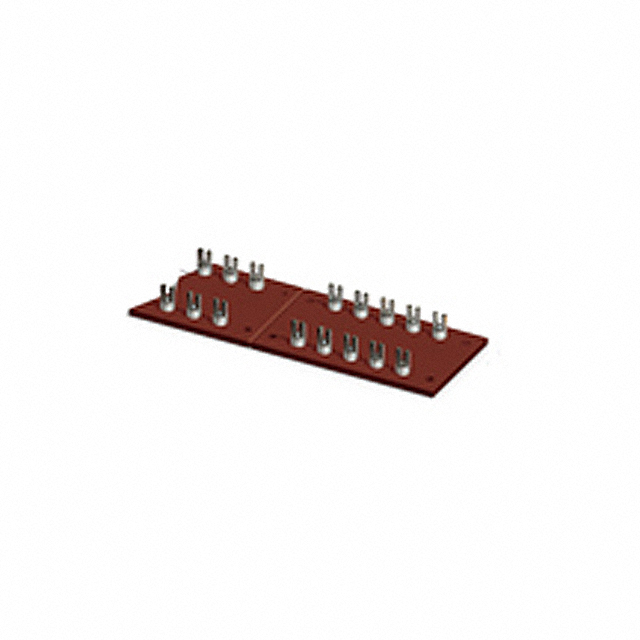

- TURRET BOARD 50POS 0.375" SINGLE
In Stock
113 pcs On sales
$32.39
Product Parameter
- Features
- Standard Strip
- Board Size
- 13.125" L x 1.500" W x 0.093" H (333.38mm x 38.10mm x 2.36mm)
- Part Status
- Active
- Row Spacing
- 1.187" (30.10mm)
- Terminal Type
- Turret, Single End, Double Turret
- Contact Finish
- Tin
- Number of Rows
- 2
- Contact Material
- Brass
- Material - Board
- Glass Epoxy
- Type
- Turret Board, Scored
- Number of Positions
- 50
- Pitch
- 0.375" (9.53mm)
- Mounting Hole Diameter
- 0.120" (3.05mm)
- Series
- -
- Material Flammability Rating
- -
