FB6S059JA2R3000
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- FB6S059JA2R3000
- Manufacture:
- JAE Electronics
- Datasheet:
- FB6S059JA2R3000
- Description:
- CONNECTOR FPC
In Stock
0 pcs On sales
$0
Product Parameter
- Packaging
- Tape & Reel (TR)
- Contact Material
- Copper Alloy
- Part Status
- Obsolete
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Termination
- Solder
- FFC, FCB Thickness
- 0.20mm
- Housing Color
- Beige
- Height Above Board
- 0.047" (1.20mm)
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 59
- Actuator Color
- Black
- Current Rating (Amps)
- 0.35A per Contact
- Cable End Type
- Tapered
- Operating Temperature
- -40°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top
- Pitch
- 0.012" (0.30mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- -
- Series
- FB8
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Zero Insertion Force (ZIF)
- Locking Feature
- Rotary Lock
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
FB6S059JA2R3000 Relevant information

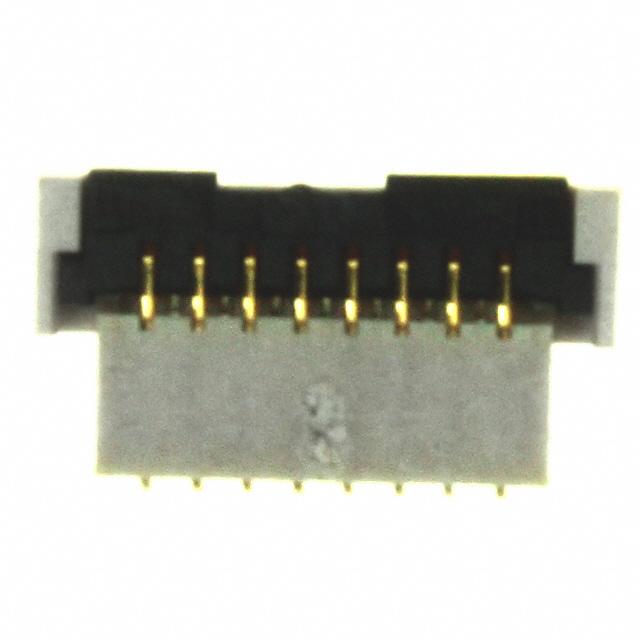

FB6S015JA1
CONN FPC BOTTOM 15POS 0.30MM R/A
FB6S015JA1R3000
CONN FPC BOTTOM 15POS 0.30MM R/A

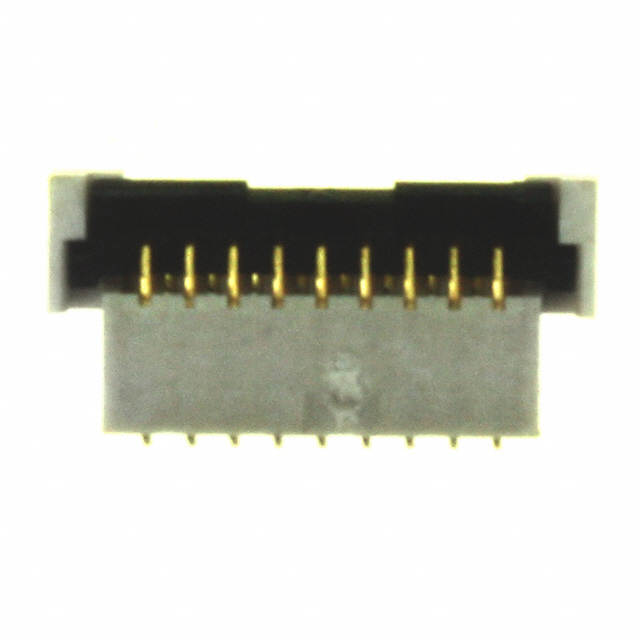

FB6S017JA1
CONN FPC BOTTOM 17POS 0.30MM R/A
FB6S017JA1R3000
CONN FPC BOTTOM 17POS 0.30MM R/A

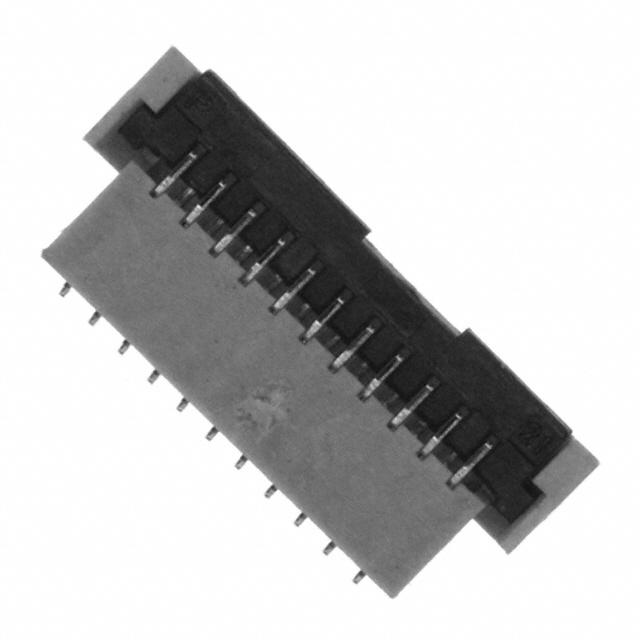

FB6S021JA1
