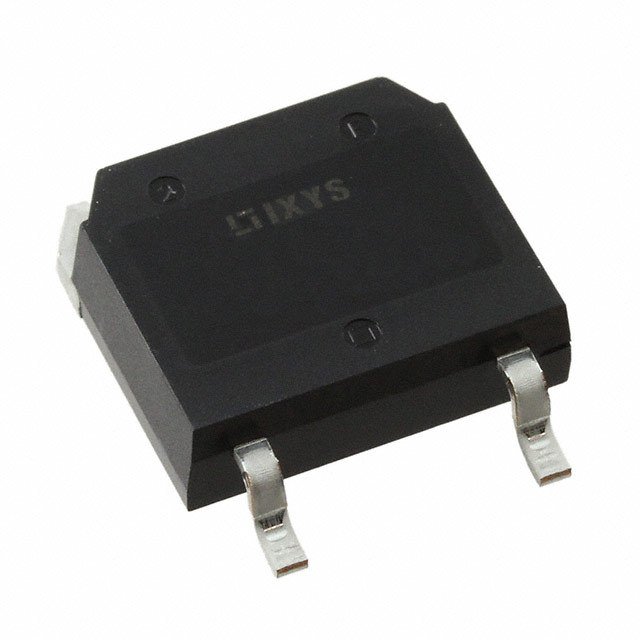

IXFT6N100F
Transistors - FETs, MOSFETs - Single
- Manufacturer No:
- IXFT6N100F
- Manufacture:
- IXYS-RF
- Package:
- TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Datasheet:
- IXFT6N100F
- Description:
- MOSFET N-CH 1000V 6A TO268
In Stock
188 pcs On sales
$9.54
Product Parameter
- Mounting Type
- Surface Mount
- Package / Case
- TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Vgs(th) (Max) @ Id
- 5.5V @ 2.5mA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 1.9Ohm @ 3A, 10V
- Series
- HiPerRF™
- Power Dissipation (Max)
- 180W (Tc)
- FET Type
- N-Channel
- Supplier Device Package
- TO-268 (IXFT)
- Packaging
- Tube
- Gate Charge (Qg) (Max) @ Vgs
- 54nC @ 10V
- Vgs (Max)
- ±20V
- Drain to Source Voltage (Vdss)
- 1000V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 1770pF @ 25V
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 6A (Tc)
- Part Status
- Active
- Drive Voltage (Max Rds On, Min Rds On)
- 10V
