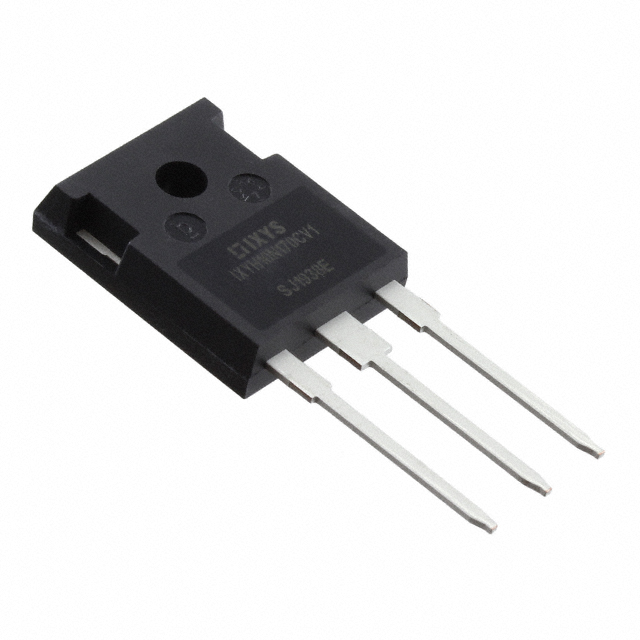

IXYH50N120C3D1
Transistors - IGBTs - Single
- Manufacturer No:
- IXYH50N120C3D1
- Manufacture:
- IXYS
- Package:
- TO-247-3
- Datasheet:
- IXYH50N120C3D1
- Description:
- IGBT 1200V 90A 625W TO247
In Stock
10125 pcs On sales
$11.25
Product Parameter
- Power - Max
- 625W
- Voltage - Collector Emitter Breakdown (Max)
- 1200V
- Mounting Type
- Through Hole
- Package / Case
- TO-247-3
- Test Condition
- 600V, 50A, 5Ohm, 15V
- Switching Energy
- 3mJ (on), 1mJ (off)
- Td (on/off) @ 25°C
- 28ns/133ns
- Series
- GenX3™, XPT™
- Operating Temperature
- -55°C ~ 150°C (TJ)
- IGBT Type
- -
- Supplier Device Package
- TO-247 (IXYH)
- Packaging
- Tube
- Vce(on) (Max) @ Vge, Ic
- 4V @ 15V, 50A
- Input Type
- Standard
- Reverse Recovery Time (trr)
- 195ns
- Gate Charge
- 142nC
- Current - Collector (Ic) (Max)
- 90A
- Part Status
- Active
- Current - Collector Pulsed (Icm)
- 210A
