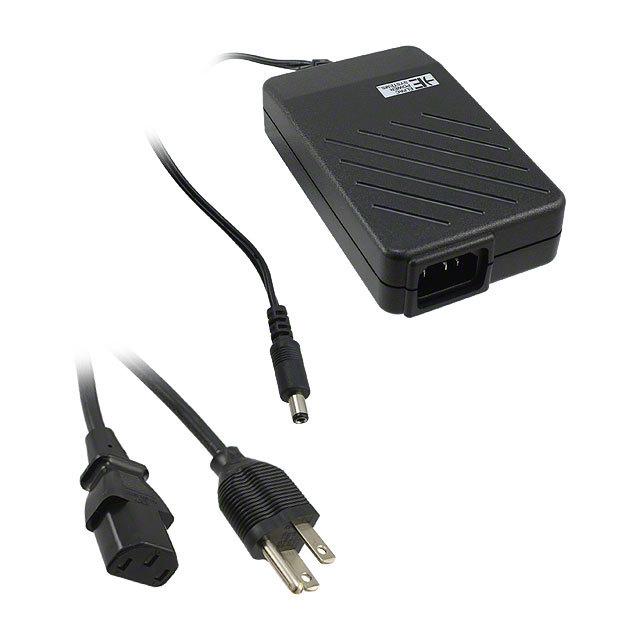

FW5024-760F
AC DC Desktop, Wall Adapters
- Manufacturer No:
- FW5024-760F
- Manufacture:
- Inventus Power
- Datasheet:
- FW5024-760F
- Description:
- AC/DC DESKTOP ADAPTER 24V 50W
In Stock
0 pcs On sales
$0
Product Parameter
- Power (Watts)
- 50W
- Input Connector
- IEC 320-C14
- Form
- Desktop (Class I)
- Region Utilized
- North America
- Series
- FW50 (50W)
- Voltage - Input
- 85 ~ 264 VAC
- Weight
- 0.75 lb (340.19 g)
- Output Connector
- Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
- Approvals
- CCC, CE, cULus, TUVgs
- Size / Dimension
- 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
- Efficiency
- 83%
- Voltage - Output
- 24V
- Input Type
- Cord
- Operating Temperature
- 0°C ~ 60°C
- Cord Length
- 72" (1.83m)
- Current - Output (Max)
- 2.1A
- Part Status
- Obsolete
- No Load Power Consumption
- 300mW (Max)
- Applications
- ITE (Commercial)
- Polarization
- Positive Center
