BSZ0902NSATMA1
Transistors - FETs, MOSFETs - Single
- Manufacturer No:
- BSZ0902NSATMA1
- Manufacture:
- Infineon Technologies
- Package:

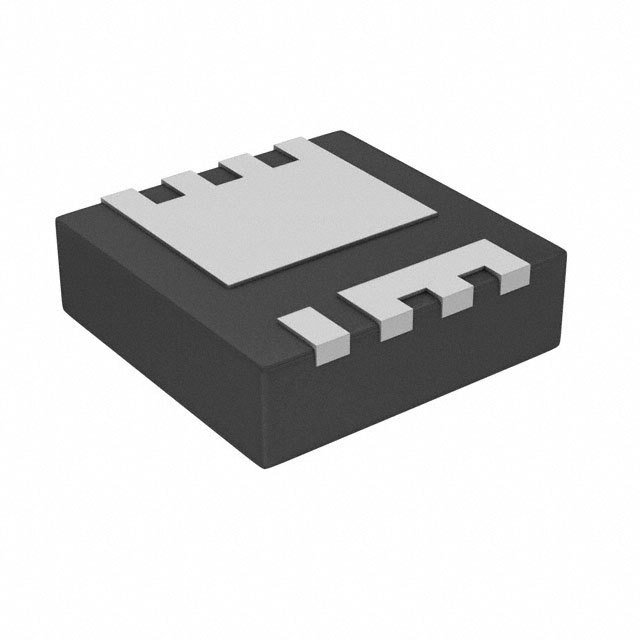

- 8-PowerTDFN
- Datasheet:
- BSZ0902NSATMA1
- Description:
- MOSFET N-CH 30V 40A TSDSON-8
In Stock
11318 pcs On sales
$0
Product Parameter
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 19A (Ta), 40A (Tc)
- Part Status
- Active
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerTDFN
- Vgs(th) (Max) @ Id
- 2V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 2.6mOhm @ 20A, 10V
- Series
- OptiMOS™
- Power Dissipation (Max)
- 2.1W (Ta), 48W (Tc)
- FET Type
- N-Channel
- Supplier Device Package
- PG-TSDSON-8-FL
- Packaging
- Digi-Reel®
- Gate Charge (Qg) (Max) @ Vgs
- 26nC @ 10V
- Vgs (Max)
- ±20V
- Drain to Source Voltage (Vdss)
- 30V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 1700pF @ 15V
