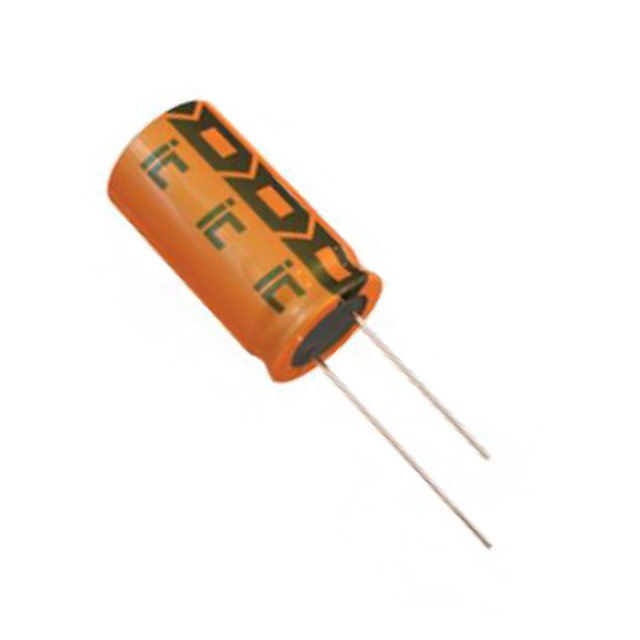

107KXM010M
Aluminum Electrolytic Capacitors
- Manufacturer No:
- 107KXM010M
- Manufacture:
- Illinois Capacitor
- Package:
- Radial, Can
- Datasheet:
- 107KXM010M
- Description:
- CAP ALUM 100UF 20% 10V THRU HOLE
In Stock
31279 pcs On sales
$0.22
Product Parameter
- Lead Spacing
- 0.079" (2.00mm)
- ESR (Equivalent Series Resistance)
- 3.1499Ohm @ 120Hz
- Polarization
- Polar
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Series
- KXM
- Voltage - Rated
- 10V
- Ratings
- -
- Lifetime @ Temp.
- 2000 Hrs @ 105°C
- Impedance
- 1 Ohms
- Size / Dimension
- 0.197" Dia (5.00mm)
- Packaging
- Bulk
- Height - Seated (Max)
- 0.492" (12.50mm)
- Tolerance
- ±20%
- Operating Temperature
- -55°C ~ 105°C
- Capacitance
- 100µF
- Surface Mount Land Size
- -
- Part Status
- Active
- Ripple Current @ Low Frequency
- 100mA @ 120Hz
- Applications
- General Purpose
- Ripple Current @ High Frequency
- 250mA @ 100kHz
