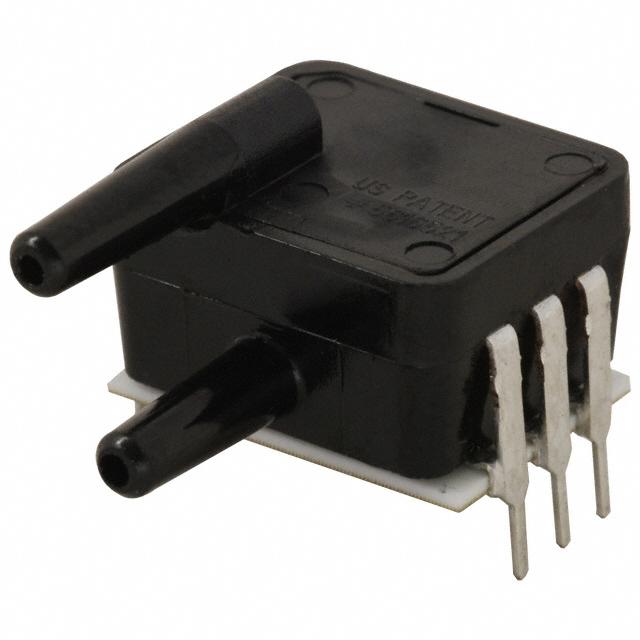

SDX05G2
Pressure Sensors, Transducers
- Manufacturer No:
- SDX05G2
- Manufacture:
- Honeywell Sensing and Productivity Solutions
- Package:
- 6-DIP Module
- Datasheet:
- SDX05G2
- Description:
- SENSOR TEMP COMP 5PSIG DIP
In Stock
261 pcs On sales
$82.93
Product Parameter
- Output
- 0 mV ~ 60 mV (12V)
- Voltage - Supply
- 20V
- Series
- SDX
- Termination Style
- PC Pin
- Accuracy
- ±1%
- Operating Pressure
- 5PSI (34.47kPa)
- Features
- Temperature Compensated
- Operating Temperature
- -40°C ~ 85°C
- Port Size
- Male - 0.11" (2.67mm) Tube
- Supplier Device Package
- -
- Port Style
- Barbless
- Output Type
- Wheatstone Bridge
- Part Status
- Active
- Applications
- Board Mount
- Pressure Type
- Vented Gauge
- Package / Case
- 6-DIP Module
- Maximum Pressure
- 20PSI (137.9kPa)
