FH34SRJ-34S-0.5SH(99)
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- FH34SRJ-34S-0.5SH(99)
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- FH34SRJ-34S-0.5SH(99)
- Description:
- CONN FPC/FFC 34POS .5MM
In Stock
1000 pcs On sales
$1.97
Product Parameter
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top and Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FFC, FPC
- Contact Finish Thickness
- -
- Series
- FH34SRJ
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Zero Insertion Force (ZIF)
- Locking Feature
- Rotary Lock, Backlock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Polyamide (PA), Nylon
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Gray
- Height Above Board
- 0.039" (1.00mm)
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 34
- Actuator Color
- Black
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Tapered
- Operating Temperature
- -55°C ~ 85°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
FH34SRJ-34S-0.5SH(99) Relevant information
FH34S-10S-0.5SH(50)
CONN FFC TOP 10POS 0.50MM R/A
FH34S-10S-0.5SH(99)
CONN FFC TOP 10POS 0.50MM R/A

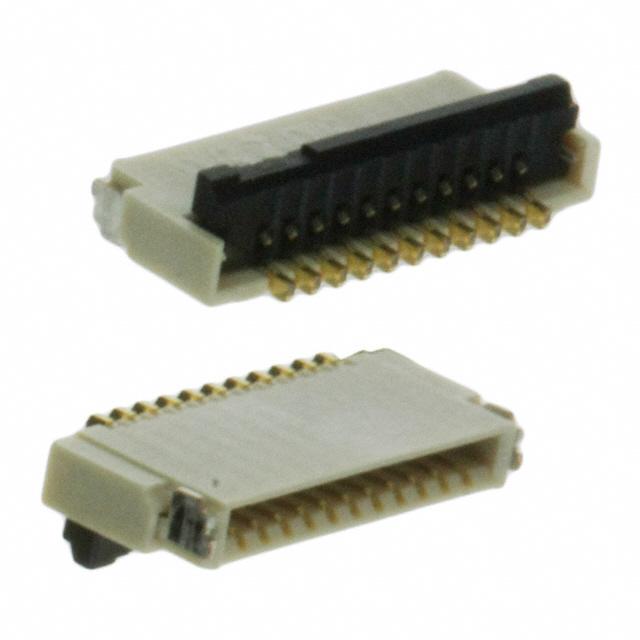

FH34S-11S-0.5SH(50)
CONN FFC TOP 11POS 0.50MM R/A
FH34S-11S-0.5SH(99)
CONN FFC TOP 11POS 0.50MM R/A

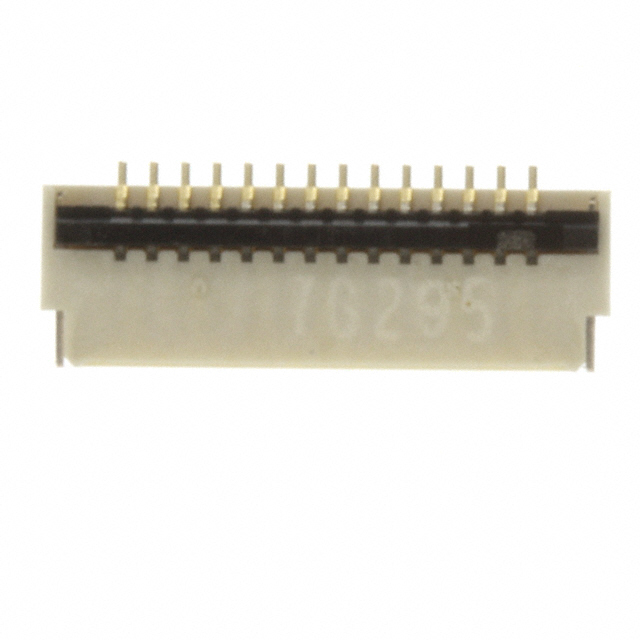

FH34S-14S-0.5SH(10)
CONN FFC TOP 14POS 0.50MM R/A

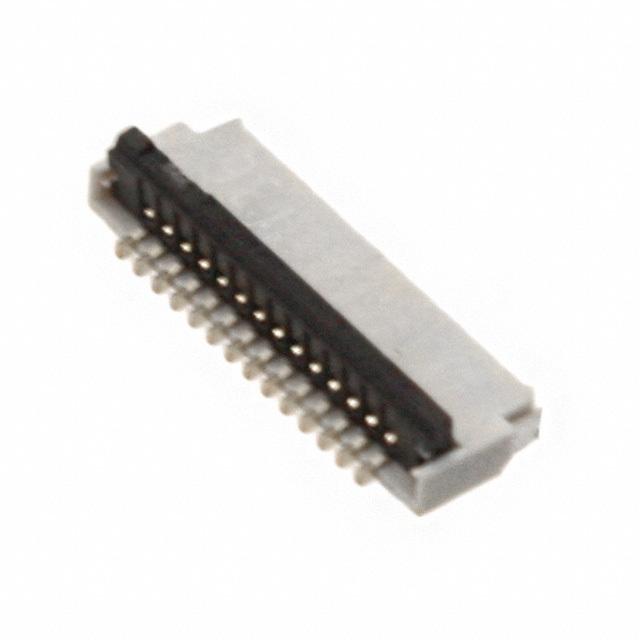

FH34S-14S-0.5SH(50)
