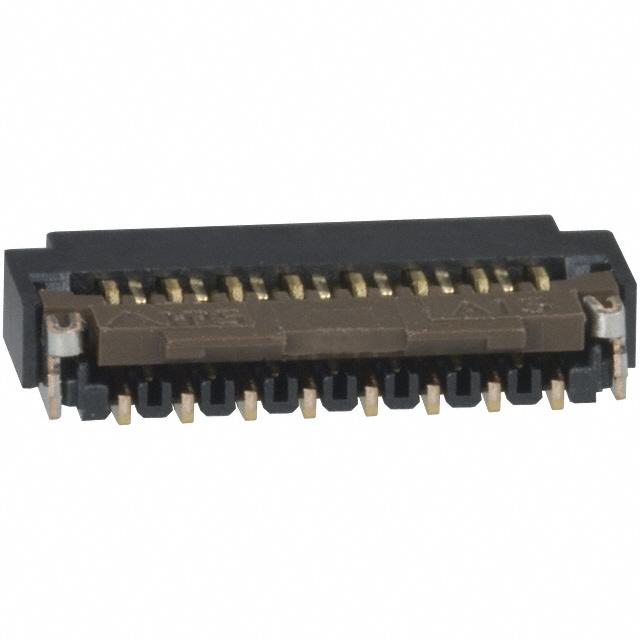

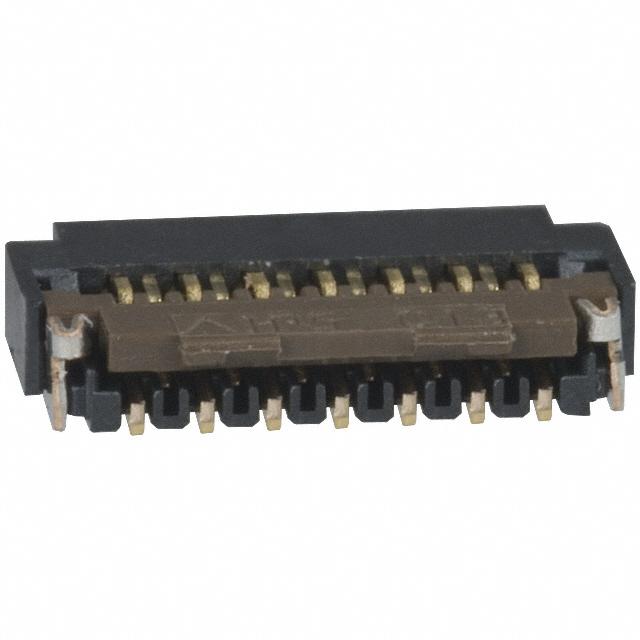

FH26W-15S-0.3SHW(60)
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- FH26W-15S-0.3SHW(60)
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- FH26W-15S-0.3SHW(60)
- Description:
- CONN FPC/FFC 15POS .3MM
In Stock
4079 pcs On sales
$0
Product Parameter
- Housing Color
- Black
- Height Above Board
- 0.039" (1.00mm)
- Mating Cycles
- 10
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 15
- Actuator Color
- Brown
- Current Rating (Amps)
- 0.2A
- Cable End Type
- Tapered
- Operating Temperature
- -55°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.012" (0.30mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- -
- Series
- FH26
- Voltage Rating
- 30V
- Material Flammability Rating
- UL94 HB
- Features
- Zero Insertion Force (ZIF)
- Locking Feature
- Flip Lock
- Packaging
- Digi-Reel®
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Polyamide (PA), Nylon
- Termination
- Solder
- FFC, FCB Thickness
- 0.20mm
