FH23-39S-0.3SHW(05)
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- FH23-39S-0.3SHW(05)
- Manufacture:
- Hirose Electric Co Ltd
- Datasheet:
- FH23-39S-0.3SHW(05)
- Description:
- CONN FPC BOTTOM 39POS 0.30MM R/A
In Stock
2500 pcs On sales
$1.18
Product Parameter
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.012" (0.30mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- -
- Series
- FH23
- Voltage Rating
- 30V
- Material Flammability Rating
- UL94 V-0
- Features
- Low Insertion Force (LIF)
- Locking Feature
- Flip Lock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Termination
- Solder
- FFC, FCB Thickness
- 0.20mm
- Housing Color
- Beige
- Height Above Board
- 0.049" (1.25mm)
- Mating Cycles
- 10
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 39
- Actuator Color
- Black
- Current Rating (Amps)
- 0.3A
- Cable End Type
- Tapered
- Operating Temperature
- -55°C ~ 85°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
FH23-39S-0.3SHW(05) Relevant information

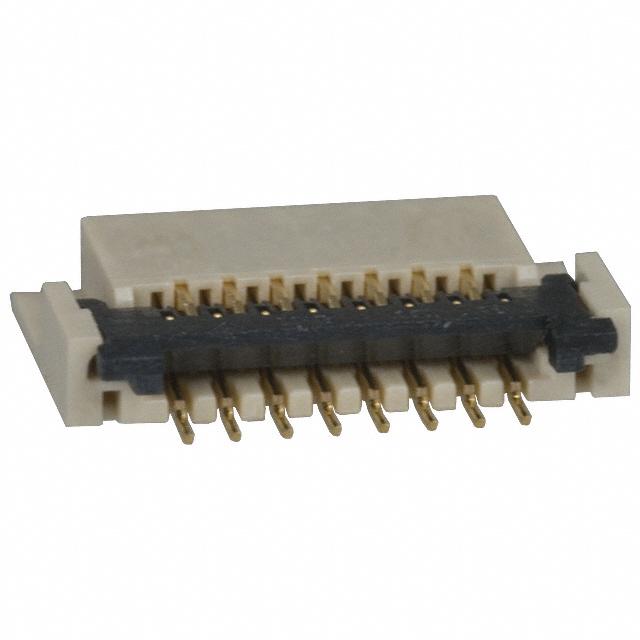

FH23-15S-0.3SHAW(05)
CONN FPC BOTTOM 15POS 0.30MM R/A

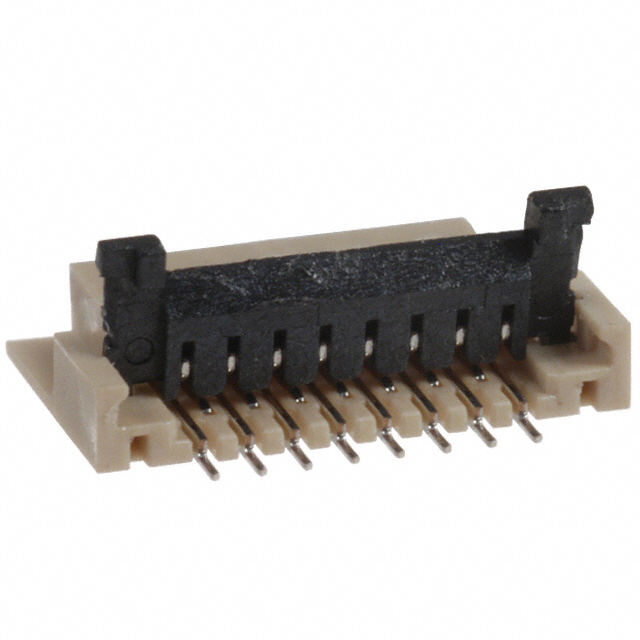

FH23-15S-0.3SHAW(51)
CONN FPC BOTTOM 15POS 0.30MM R/A
FH23-15S-0.3SHW(05)
CONN FPC BOTTOM 15POS 0.30MM R/A

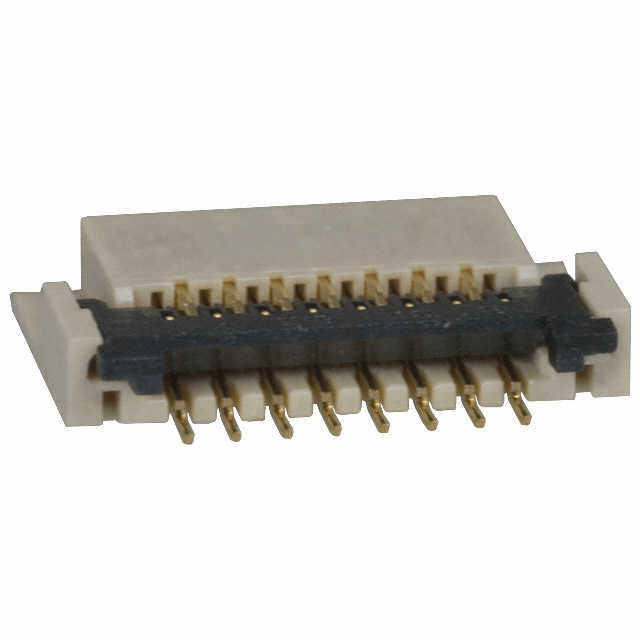

FH23-15S-0.3SHW(10)
CONN FPC BOTTOM 15POS 0.30MM R/A

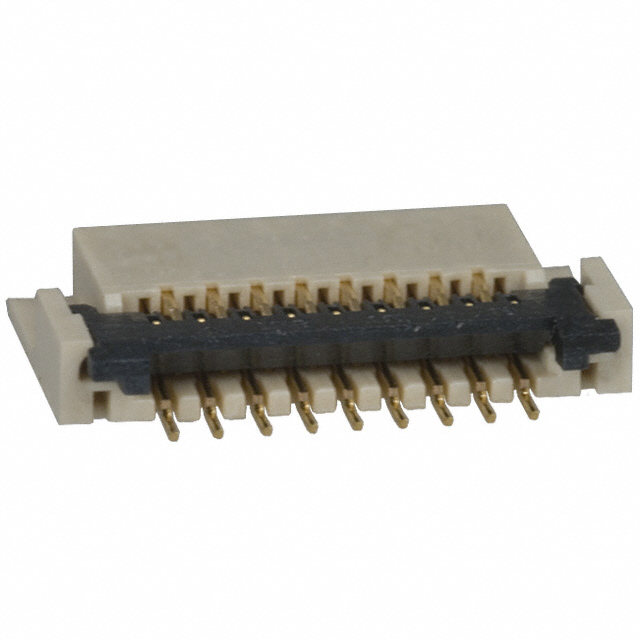

FH23-17S-0.3SHAW(05)
