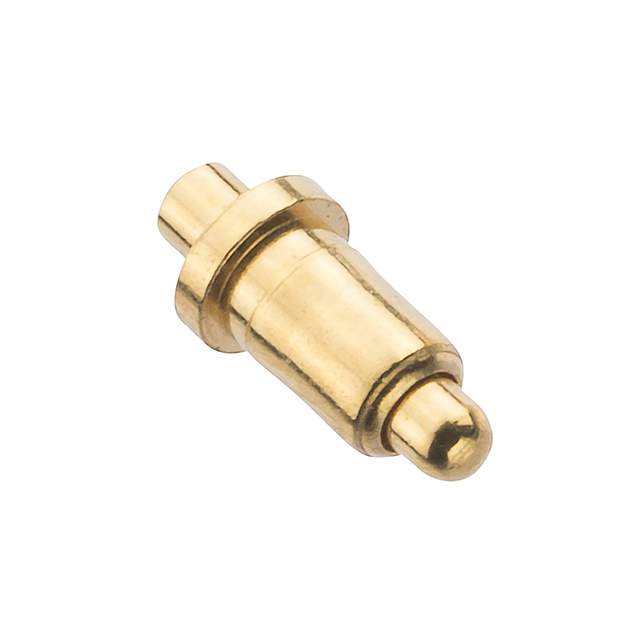

P70-2300045R
Contacts, Spring Loaded and Pressure
- Manufacturer No:
- P70-2300045R
- Manufacture:
- Harwin Inc.
- Datasheet:
- P70-2300045R
- Description:
- CONTACT SPRING LOADED T/H GOLD
In Stock
8164 pcs On sales
$0
Product Parameter
- Plunger Size
- 0.035" (0.90mm) Dia
- Recommended Working Height
- 0.193" (4.90mm)
- Mating Cycles
- 10000
- Material Flammability Rating
- -
- Mounting Type
- Through Hole
- Operating Force - Mid Compression
- 84.64gf
- Contact Finish
- Gold
- Contact Material
- Brass
- Pad Layout Dimension
- Circular - 0.071" (1.80mm) (TH)
- Current Rating (Amps)
- 2A
- Series
- -
- Operating Temperature
- -40°C ~ 85°C
- Features
- -
- Maximum Working Height
- 0.205" (5.21mm)
- Packaging
- Digi-Reel®
- Minimum Working Height
- 0.181" (4.60mm)
- Part Status
- Active
- Contact Finish Thickness
- 16.0µin (0.41µm)
- Contact Type
- Sleeve & Plunger
- Operating Force - Initial
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
P70-2300045R Relevant information

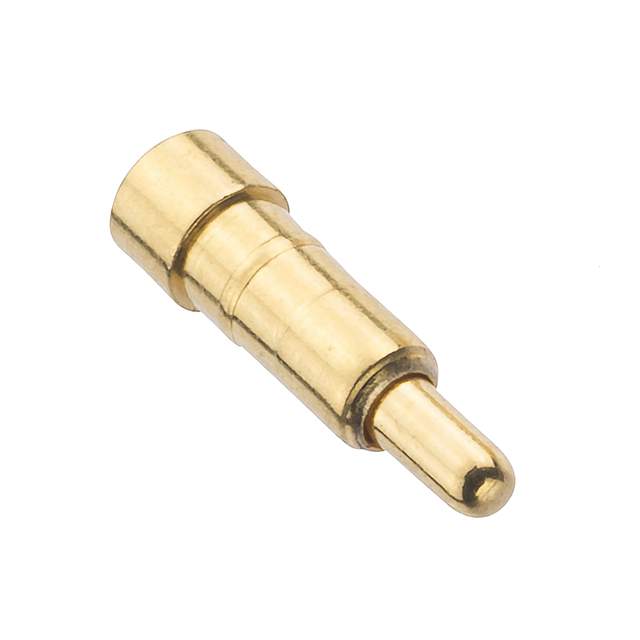

P70-1000045R
CONTACT SPRING LOADED SMD GOLD

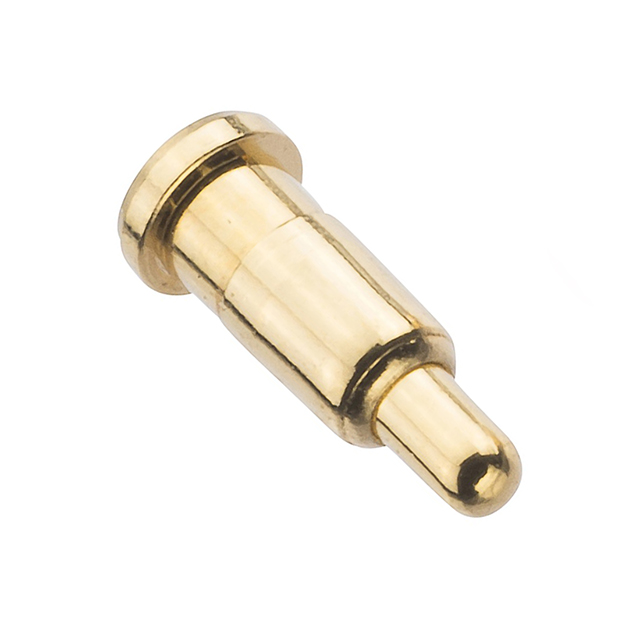

P70-1010045R
CONTACT SPRING LOADED SMD GOLD

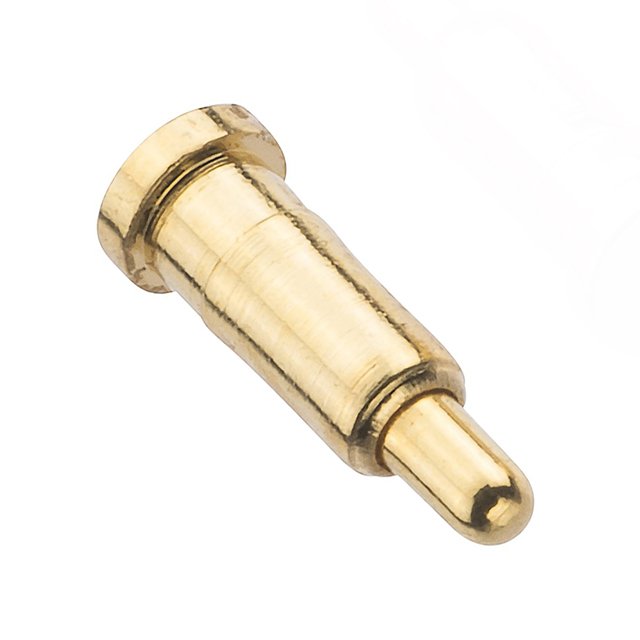

P70-1020045R
CONTACT SPRING LOADED SMD GOLD

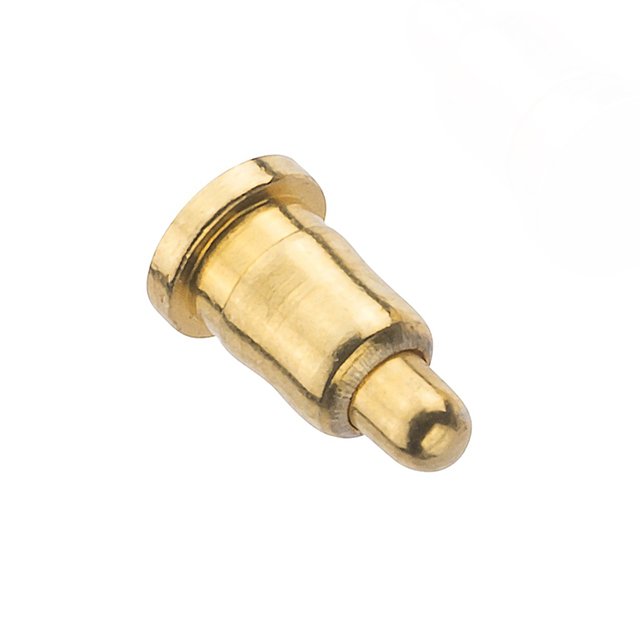

P70-1030045R
CONTACT SPRING LOADED SMD GOLD

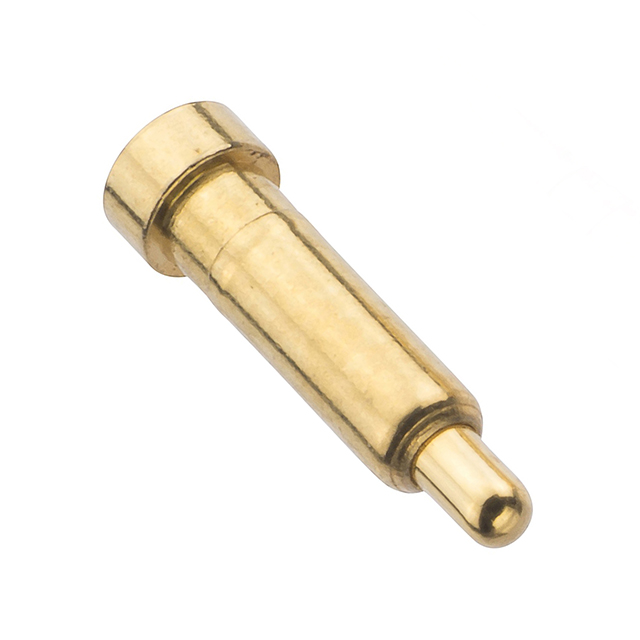

P70-1100045R
