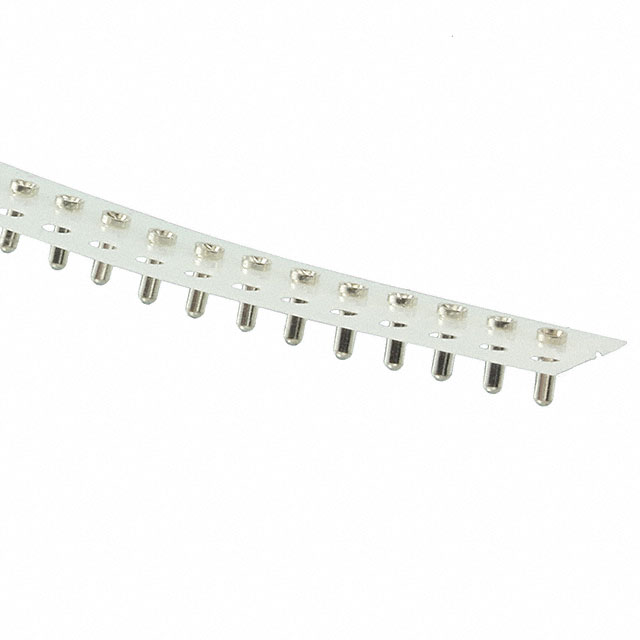

D01-9900301
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- D01-9900301
- Manufacture:
- Harwin Inc.
- Datasheet:
- D01-9900301
- Description:
- CONN PIN RCPT .016-.020 SOLDER
In Stock
0 pcs On sales
$0.57
Product Parameter
- Flange Diameter
- 0.057" (1.45mm)
- Insertion Force
- 2.00N ~ 6.00N
- Series
- -
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.142" (3.61mm)
- Packaging
- Tube
- Pin Hole Diameter
- 0.043" (1.09mm)
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.016" ~ 0.020" (0.41mm ~ 0.51mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 100°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.039" ~ 0.043" (0.99mm ~ 1.09mm)
- Socket Depth
- 0.124" (3.15mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 3.94µin (0.10µm)
- Contact Finish
- Gold
- Board Thickness
- -
