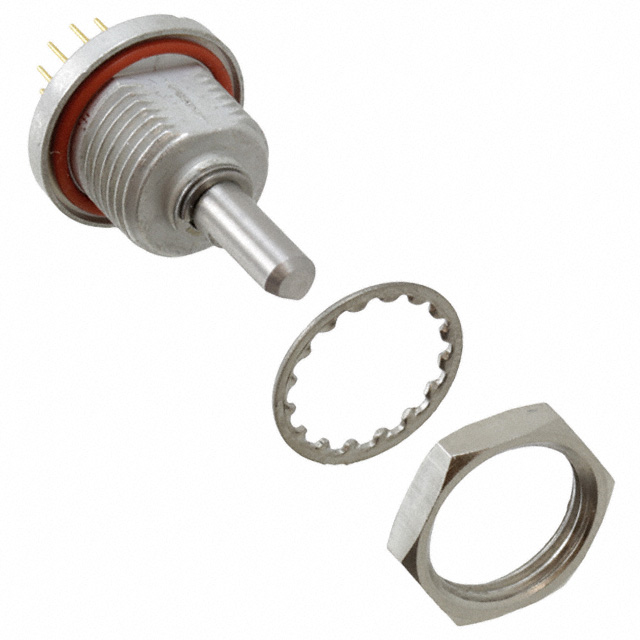

77SP36-01-2-05N
Rotary Switches
- Manufacturer No:
- 77SP36-01-2-05N
- Manufacture:
- Grayhill, Inc.
- Datasheet:
- 77SP36-01-2-05N
- Description:
- SWITCH ROTARY 5POS 50MA 115V
In Stock
74 pcs On sales
$37.65
Product Parameter
- Part Status
- Active
- Depth Behind Panel
- 4.57mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 5
- Mounting Type
- Panel Mount, Through Hole
- Voltage Rating - AC
- 115V
- Angle of Throw
- 36°
- Voltage Rating - DC
- 28V
- Contact Finish
- Gold
- Current Rating (Amps)
- 50mA (AC), 200mA (DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 9.53mm Dia
- Actuator Length
- 7.98mm
- Number of Poles per Deck
- 2
- Number of Decks
- 1
- Operating Force
- -
- Series
- 77
- Circuit per Deck
- DP5T
- Features
- Shaft and Panel Sealed
- Contact Material
- Silver Cadmium Oxide (AgCdO)
- Index Stops
- Fixed
- Termination Style
- PC Pin
