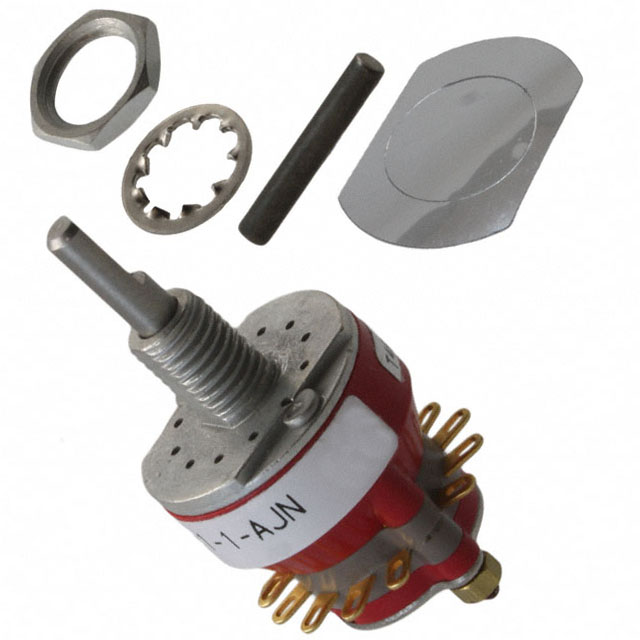

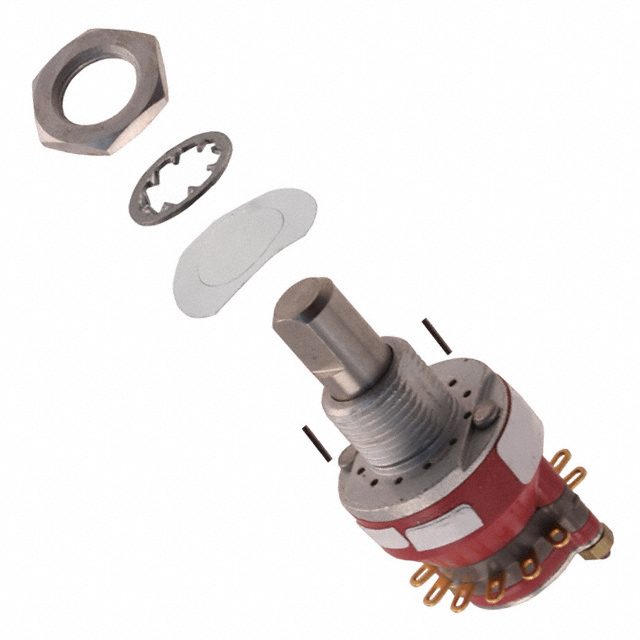

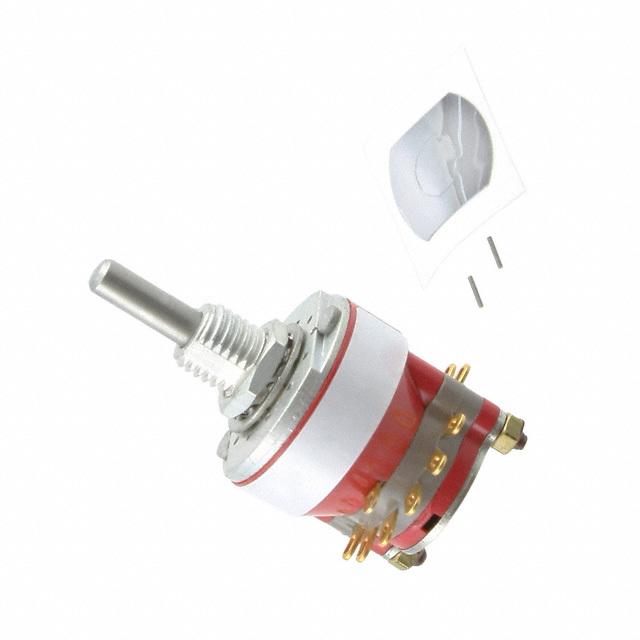

71ADF30-01-1-AJN
Rotary Switches
- Manufacturer No:
- 71ADF30-01-1-AJN
- Manufacture:
- Grayhill, Inc.
- Datasheet:
- 71ADF30-01-1-AJN
- Description:
- SWITCH ROTARY 2-12POS 250MA 115V
In Stock
465 pcs On sales
$21.02
Product Parameter
- Number of Decks
- 1
- Operating Force
- 2.880 ~ 23gfm
- Series
- 71
- Circuit per Deck
- SP12T
- Features
- -
- Contact Material
- Silver Alloy
- Index Stops
- Adjustable
- Termination Style
- PC Pin
- Part Status
- Active
- Depth Behind Panel
- 19.33mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 2 ~ 12
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Voltage Rating - AC
- 115V
- Angle of Throw
- 30°
- Voltage Rating - DC
- 30V
- Contact Finish
- -
- Current Rating (Amps)
- 250mA (AC/DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- -
- Actuator Length
- 9.53mm
- Number of Poles per Deck
- 1
